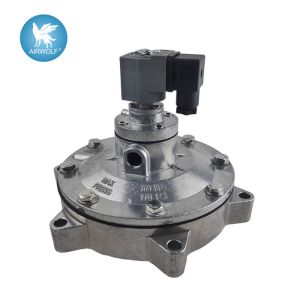

860KPA CA62MM RCA62MM G2 1/2 Pulse Jet Valves

CA62MM RCA62MM Global valve for aquare tank G2 1/2 pulse solenoid valve

Description
Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1" and 1.5" models are supplied with outlet pipes to length specified, 3" model is supplied without outlet pipes.

Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Operation
Recommended
on time range: 50-500ms
Recommended time
between pulses: 1 minute or greater

Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

Installation
1. MM valves are installed through the tank, refer to the appropriate template listed
above.
2. To avoid any potential operational problems it is preferable that the valves are
not mounted underneath the tank where condensation may collect. All o-rings
should be coated with a silicone based lubricant or similar.
3. Dresser nut seals where used are a pressure seal only, not a structural
component. Do not rely on dresser seals to retain either the tanks or blowtubes.
Tanks and blowtubes must be independently restrained.
4. Tighten dresser nuts to 20Nm (15 ftlbs) max.
5. Tighten pipe outlets to 20 Nm (15 ftlbs).
6. Connect to FLY/AIRWOLF pilot valve, if remotely actuated.
7. Ensure compressed air supply is dry and free from oil and dirt.
8. Check all cleaning system components are secure before applying pressure.
9. Apply moderate pressure and check for leaks.
10.Fully pressurise system.
11.Test fire and listen for proper actuation and crisp pulse noises.

Diaphragm kit
