    14 Inch Industrial Touch Panel PC Full HD Core I3-6100U 2.3GHz - 2.8GHz CPU

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SC14
    Certification : CE , FCC , RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    14 Inch Industrial Touch Panel PC Full HD Core I3-6100U 2.3GHz - 2.8GHz CPU

    14 Inch Widescreen Panel PC PCAP USB Touch Full HD Core I3-6100U


    Features

    1) Intel ® Core I3-6100U 2.3GHz-2.8GHz

    2) SSD 32GB

    3) RAM 4G DDR3


    4) 14 inch industrial LCD Panel

    5) Project Capacitive Touch (10 points)

    6) Luminance 400nits

    7) Integrated WiFi

    8) Aluminum Alloy bezel + High strength cold rolled steel back case + Aluminum Alloy heat sink

    10) Support Windows 7/8/10, Linux, Ubuntu, Debian etc.


    14" Panel PC Applications


    Industrial area


    Manufacturing field

    Metro station

    Construction area

    Hotel


    Home automation


    Packing Details

    Power adapter


    Embedded screws


    Driver CD


    Touch pen



    Specification

    Model:SC14
    PC
    CPUIntel ® Core I3-6100U 2.3GHz-2.8GHz
    ChipsetIntel® HD Graphics 520
    Memory4G DDR3 (2G,8G,16G optional)
    Hard Drive Capacity64G SSD
    Hard Drive OptionalSSD: 32G,128GB,256GB
    HDD: 500GB,1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    Network1×Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI
    I/O Interface4×USB 3.0, 2 x COM RS232
    1×VGA/HDMI/2×RJ45/Audio OUT/MIC IN/POWER DC
    Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
    LCD panel
    Panel size14"
    Resolution1920*1080
    Aspect ratio16:9
    Support Color16.7M colors
    Brightness (cd/m²)400+
    Response time5ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen TypeProject Capacitive Touch (10 points)
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Luminousness90%
    Surface Hardness7H
    Working life>50 million times
    Touch options( 5 wires resistive touch, IR touch optional)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltageDC12V (9-24V vide voltage optional)
    Power consumption≤45W
    Enclosure
    MaterialAluminum Alloy bezel+High strength cold rolled steel back case+Aluminum Alloy heat sink
    ColorSilver , Black, white, color can be customized
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight3.5kg
    Gross weight3.5kg
    Product Dimension36.5*23.8*5.4cm
    Packing size48x44x19cm
    AccessoriesPower adapter,embedded screws,driver CD,touch pen
    Other
    Mounting (options)embedded mounting screws
    wall mounting brackets (optional)
    desk stand holder (optional)
    Warranty1 year warranty

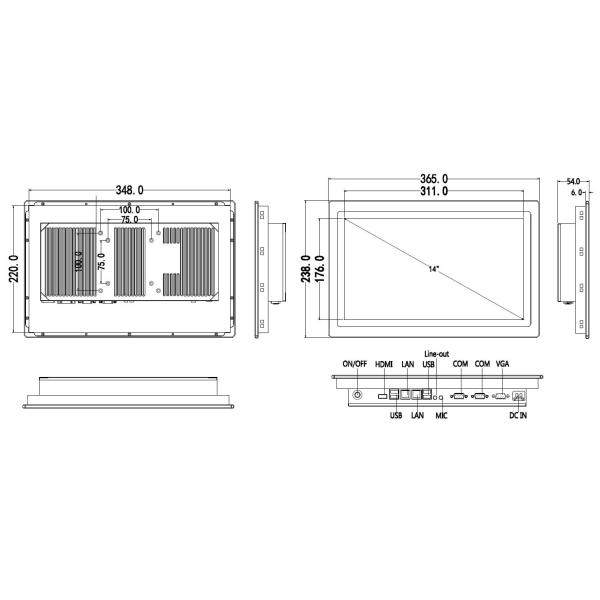

    Drawing picture
