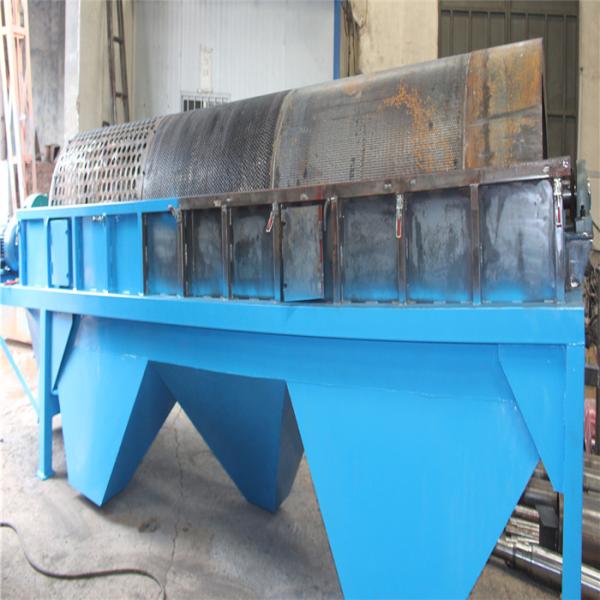

Sand Carbon Steel Rotary Trommel Drum Screen Machine
Brief description
Sand Carbon Steel Rotary Trommel Drum Screen Machine is mainly composed of several circular screen clothes, and is in a
tilt state with ground on the whole, the screening drum rotates
under certain rotation speed through deceleration system, the
materials are screened from top to down through screening drum,
fine materials are discharged from bottom of screening drum front,
and coarse materials are discharged from tail of screening drum
bottom.
Application
Sand Carbon Steel Rotary Trommel Drum Screen Machine is widely used
in many industries, such as mining, building materials, metallurgy,
casting, abrasive material, chemical, light industry, medicine and
food industries.
Working principle
The raw materials through the entrance of the Inlet will be pushed
into the rotary trommel screen. Raw materials in the rotary drum cylinder will be selected by the
rotation of rotary drum sieve ,with the rotating of the cylinder
the materials that less than the screen mesh will flow down by
gravity ,the oversize materials will flow through the cylinder and
discharge from outlet at the machine end.
Technical parameters
The following table shows the detailed data of different models of Sand Carbon Steel Rotary Trommel Drum Screen Machine, we will choose a suitable model according to the customers'
needs.
| Model | Segments of screen mesh | Mesh size (mm) | Power (KW) | Inclination | Rotating speed (rpm) | Capacity (m3/h) | Overall dimension |
| YTS600 | 1-3 | 5-35 | 2.2-3 | 7° | 20 | 10 | 5400*1150*1200 |
| YTS800 | 1-3 | 5-40 | 2.2-5.5 | 7° | 18 | 14 | 5600*1300*1500 |
| YTS1000 | 1-4 | 5-45 | 3-7.5 | 7° | 16 | 16 | 7400*1400*2240 |
| YTS1200 | 1-4 | 5-50 | 4-11 | 7° | 15 | 20 | 9480*1580*3400 |
| YTS1500 | 1-4 | 5-55 | 4-15 | 7° | 12 | 23 | 9700*1860*3700 |
| YTS2000 | 1-5 | 5-60 | 11-18.5 | 7° | 8 | 45 | 1100*2400*4500
|
Main Features
1. The installation of a small angle of inclination, is not easy to
plug.
2. To occupy a small space.
3. Low noise, less pollution and dust.
4. A smooth operation.
5. Efficient screening.
Advantages
1. Wide adaptability of materials
The trommel screen is widely used in screening of various materials,
regardless of fault coal, coal slime and soot and other materials,
they are all screened smoothly.
2. High screening efficiency
It is equipped with comb-type screen cleaning mechanism, no matter
how dirty and miscellaneous the materials that have entered into
the screening drum during screening, thus increasing the screening
efficiency.
3. Large screening volume, easy for large scale
Under the same size, the area of a circle is larger than that of
any other shape, so the effective area of its screening is larger,
materials can fully touch screen cloth, thus the screening capacity
in unit time is larger. It is also easy for large scale due to
simple structure and convenient arrangement.
4. Good working environment
The whole screening drum can be sealed with sealing isolation hood,
thus reducing the noise of equipment, and thoroughly remove dust
flying, lump splashing during screening circulation process,
avoiding pollution to working environment.
5. Convenient maintenance
The upper sealing isolation hood can be taken apart, which does not
affect the normal operation of machine, and allows very convenient
maintenance.
