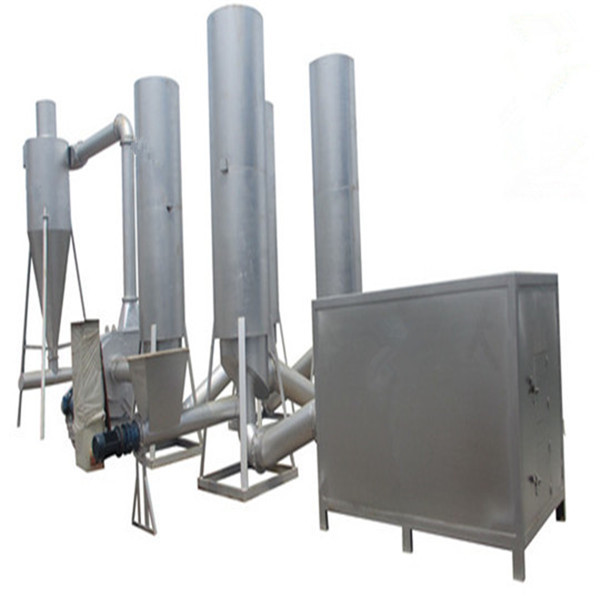

Airflow Dryer Machine Drying Wood Sawdust,Straw,Cotton Stalk,Wheat
Straw,Wood Shavings
Introduction of airflow dryer machine
Airflow dryer widely used in straw briquette fuel, charcoal
machine, sawdust pellet fuel, sawdust briquetting, agriculture and
animal husbandry projects and other industries.As a drying
equipment for drying wood sawdust,straw,cotton stalk,wheat
straw,wood shavings,or agricultural waste to production
Pellets,briquette as biomass fuels.
Airflow dryer uses the principle of instantaneous air drying, It
has the advantages of high drying intensity, short drying time,
less energy consumption, simple operation and good product quality.
The starch dried by this equipment has the advantages of clean
appearance, luster, high fineness, stable moisture content and
small impurity pollution. The air dryer is suitable for drying
powdery, flake and heat sensitive materials in starch, rice flour,
food, medicine, chemical industry and other industries The
equipment can achieve the best economic benefits with the least
investment, the lowest energy consumption, the least manpower and
site, and the fastest speed.
The new type of high-yield and energy-saving air dryer is a new
type of air drying equipment which is improved on the basis of the
original air dryer. It has been greatly improved in structure and
performance, and has been highly recognized by users. What's more,
the new type of air dryer can freely deform and combine according
to the needs of production.
Technical parameters of airflow dryer machine
| Model | TYHG450 | TYHG650 | TYHG950 | TYHG1300 |
| Dryer diamter(mm) | 450 | 650 | 950 | 1300 |
| Feeding size(mm) | 2-20 | 2-20 | 2-20 | 2-20 |
| Feeding moisture content(%) | 10%-80% | 10%-80% | 10%-80% | 10%-80% |
| Diacharge moisture content(%) | 5% | 5% | 5% | 5% |
| Capacity(t/h) | 500 | 1200 | 2000 | 3200 |
| Power(kw) | 6.25 | 21.5 | 34.4 | 50.2 |
| Weight(kg) | 1550 | 5500 | 7500 | 11000 |
| Installation(m) | 6*1.5*4 | 8*1.5*4 | 15*2.5*5 | 20*4*5 |
Working principle of airflow dryer machine:
The raw materials enter the furnace through the pipe through the
feed port, and the hot air around the pipe is pumped to saklone Li
by the fan together with the hot air. The dried materials are
discharged from the sand clone, and the waste hot gas and steam are
discharged from the sand clone.
Operating procedures:
1. After installation, turn on the fan and check whether the fan
rotation direction and feeding port suction are normal.
2. Check the flange joints to see if there is air leakage.
3. The cloth bags with opening at both ends are tied at the
discharge port of the separator.
4. When the material to be dried is added into the feeding port,
large particles must be screened out before drying, which is
conducive to improving the drying speed.
5. Fuel is added into the furnace to ignite, and the fan is turned
on. When the temperature at the air outlet reaches 150 ℃, the
material is cut and dried.
6. Remove the large pieces of material at the slag outlet in time
to facilitate feeding.
