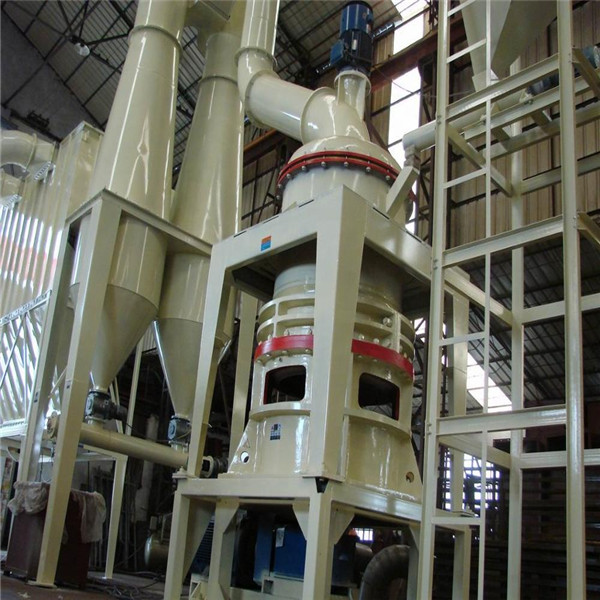

Three ring medium speed superfine grinding machine used mill powder
for calcite, chalk, limestone, dolomite, carbon black, kaolin,
bentonite, talc, mica
Introduction:
The three ring medium speed superfine grinding machine is mainly
used for processing non flammable and explosive brittle materials
with medium and low hardness and Mohs hardness ≤ 6, such as
calcite, chalk, limestone, dolomite, carbon black, kaolin,
bentonite, talc, mica, magnesite, illite, pyrophyllite,
vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite,
gypsum More than 100 kinds of materials, such as alunite, graphite,
fluorite, phosphate rock, potassium ore, pumice and so on, the fine
powder particle size can be adjusted between 325-3000 mesh, and the
output can reach 0.6-6.5 tons per hour.
Advantage:
1. High efficiency and energy saving. When the fineness of the
finished product and the power of the motor are the same, the
output of the air flow mill, stirring mill and ball mill is more
than double.
2. Long service life of wearing parts. The grinding roller and ring
are forged with special materials, so the utilization degree is
greatly improved. When the fineness of materials and finished
products are the same, the service life of wear parts of impact
crusher and Turbine Crusher is 2-5 times longer than that of impact
crusher and Turbine Crusher, and the service life can reach 2-5
years when processing calcium carbonate and calcite.
3. High safety and reliability. Because there is no rolling bearing
and no screw in the grinding chamber, there is no problem that the
bearing and its sealing parts are vulnerable, and there is no
problem that the screw is easy to loose and destroy the machine.
4. High fineness. The fineness of HGM three ring medium speed
superfine grinding can reach D97 ≤ 5 μ m at one time.
5. Environmental protection and cleaning. Using pulse dust
collector to capture dust and muffler to reduce noise, it has the
characteristics of environmental protection and cleaning.
Working principle:
When working, the main motor drives the spindle and turntable to
rotate through the reducer, and the roller pin at the edge of the
turntable drives dozens of grinding rolls to roll in the grinding
ring raceway.After being crushed into small particles by hammer
crusher, the large materials are sent to the storage bin by the
elevator, and then the materials are evenly sent to the bulk tray
on the upper part of the rotary table through the vibrating feeder
and inclined feeding pipe.Under the action of centrifugal force,
materials disperse to the periphery of the circle and fall into the
raceway of the grinding ring, which is impacted, rolled and ground
by the ring roller. After being processed into powder by the
three-layer ring, the high-pressure fan sucks the external air into
the machine by suction, and brings the crushed materials into the
separator.The rotating impeller in the separator makes the coarse
material fall back to regrind. The fine powder meeting the
requirements enters the cyclone dust collector with the air flow
and is discharged by the discharge valve at the lower part. The
airflow with a small amount of fine dust is purified by the pulse
dust collector and discharged through the fan and muffler.
Technical Parameters:
| Model | HGM8021 | HGM924 | HGM10027 | HGM10036 |
| Average diameter(mm) | 800 | 900 | 1000 | 1000 |
| Ring numbers/level(pcs) | 3 | 3 | 3 | 4 |
| Roller numbers(pcs) | 21 | 24 | 27 | 36 |
| Speed of main shaft(r.p.min) | 230 | 200 | 180 | 180 |
| Feeding size(min) | ≤20 | ≤20 | ≤20 | ≤20 |
| Final size(μm) | 5-47 | 5-47 | 5-47 | 5-47 |
| Production capacity(t/h) | 0.4-4.5 | 0.4-5.5 | 0.6-6.5 | 0.7-7.5 |
| Overall diamensions(m)(L*W*H) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*46*8.6 |
| Motor power(kw) | 145 | 192 | 263 | 263 |
