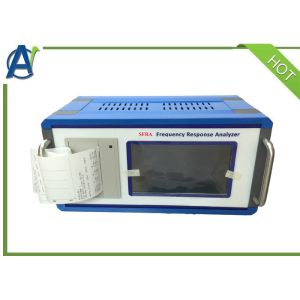

Automatic Transformer Sweep Frequency Response Analyzer SFRA with Touch screen

Introduction:

• Normally, the structure and reference of transformer is fixed after being made, therefor, the frequency response of each winding will be almost the same. However, under some special conditions, such as cut off between circles or phases during test, cut off or winding moved during running, winding moved in transportation, these conditions may change the structure of transformer , then the frequency response may be changed, we could detect the deformation according to the frequency response curve.
• Our company has designed the base on the idea and the advanced technique. It could draw the frequency response curve accurately. Then we compare the curves horizontally or vertically to detect the deformation of the transformer.
• Transformer Sweep Frequency Response Analyzer is a powerful and sensitive method to evaluate the core, winding and clamping structures of power transformers, by measuring their electrical transfer functions over a wide frequency range.

Specifications:

Features:

1. This Transformer Sweep Frequency Response Analyzer adopts advanced technical of DDS;
2. The SFRA adopts high speed and advanced microprocessor;
3. Transformer Sweep Frequency Response Analyzer has double channels of AD chip of 16 bits;
4. With seven inch LCD touch screen;
5. The SFRA has build-in thermal printer;
6. With PC software, user can operate, analyze data, upload data and generate word document;
7. Transformer Sweep Frequency Response Analyzer can store 40 groups of data;
8. You can use USB2.0 to connect with the device;
