Waterproof IP68 Rated Traffic Road Safety Parking Hydraulic
automatic driveway Bollard for hotel entrance
Product Description
High speed waterproof rising bollard for intelligent car parking
management.
Bollard Barriers offer a reliable and efficient method to ensure
only authorized users are allowed access to each area of a
building.
The SINOMATIC BOLLARD is an attractive bollard barrier that is
easily capable of handling high volume and abusive conditions. The
compact unit makes it simple to construct a multiple lane set-up
while the variety in colors allows you to match different
appilication.
Technical Parameter
| Control System | Integrated Electro- Hydraulic |
| Passing pressure: | ≤80- 120 tons container trucks |
| Voltage: | AC220V 50Hz Integrated |
| System Dynamic power | 350W Integrated |
| Rise time : | ≤3-4S (adjustable) |
| fall time : | ≤3-4S (adjustable) |
| Material: | 304 stainless steel |
| Rising height: | 600mm |
| Diameter | 168mm,219mm,273mm (can be customized) |
| External housing size | 430*430*1100mm/500*500*900mm |
| Thickness of bollard | 6mm,8mm,10mm.12mm,15mm,20mm (optional) |
| Working Temperature : | -35ºC~75ºC(suitable) |
| Storage Environment : | 10ºC~65ºC, Waterproof and moisture-proof |
| Solenoid valve voltage : | 24V |
| Remote control distance | Approx .50m-100m |
| Running noise | ≤60 db |
| Waterproof: | IP68, double sealed |
| Weight: | 200 KG approx. |

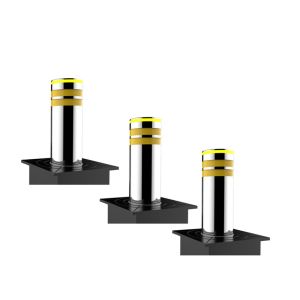

PRODUCT PHOTO
Main Function
1.Different thickness of steel is available
2.Different grade of reflective film is available : High-Intensity
Reflective Film, engineering grade sheet
3.supper grade sheet
4.Different standard color is available
5.Customized design and size
6. Steady and safe due to the Omron plc control system
7. Speedy and durable due to the use of hydraulic pressure
8. Lower down the bollards by handle valve in case of power failure
or fault of automatic system
9. Raise up the bollards by handle pump in case of power failure or
fault of automatic system
10. Galvanization is durable and stainless
11.Optimization of frame structure, high anti-impact capability,
high loading capability
12.Protecting key avoids mis-operation
CRASH TEST
SYSTEM INCLUDED
INSTALLATION
