    Highway Construction 1TPH 8TPH Bitumen Emulsion Machine

    Ask Lasest Price
    Brand Name : ZOOMLINE
    Model Number : YR-6/8/10
    Certification : ISO, CE, EAC
    Price : Negotiable
    Supply Ability : 5 sets per month
    Delivery Time : within 20 working days
    • Product Details
    • Company Profile

    Highway Construction 1TPH 8TPH Bitumen Emulsion Machine

    YR-8 Emulsified Bitumen Equipment

    Product Description

    The bitumen emulsifying equipment developed by our company has the advantages of simple structure, convenient operation, wide range of bitumen content, stable quality, and can meet the requirements of different construction technologies. It has been widely used in highway construction and highway maintenance projects.


    Technical Parameters
    ModelYR-6YR-8YR-10
    Capacityl-6T/hl-8T/hl-10T/h
    Butimen emulsified fineness≤5um accounted for 85%≤5um accounted for 85%≤5um accounted for 85%
    Parting size(L*W*H)6000*2000*2300mm6000*2000*2300mm10000*2300*2300mm
    Emulsion blending tank(Diameter * height)1150*1250mm1150*1250mm1150*1250mm
    Bitumen transfer tank(L*W*H)1500*1400*1500mm1500*1400*1500mm1800*1500*1500mm
    Water heating tank(L*W*H)1500*1400*1500mm1500*1400*1500mm1800*1500*1500mm
    Finished boxL×W×H
    =1000*800*800mm
    L×W×H
    =1000*800*800mm
    L×W×H
    =1800*1500*1500mm
    Bitumen speed regulating pumpModelLCP-5ALCP-5ALCP-5A
    MotorYCT160-4B(4kw)YCT160-4B(4kw)YCT160-4B(4kw)
    Flow4.5T/h5T/h5T/h
    Emulsion speed control pumpModelLCP-5BLCP-5BLCP-5B
    MotorYCT160-4B(3kw)YCT160-4B(3kw)YCT160-4B(3kw)
    Flow5T/h5T/h5T/h
    Emulsification machineModelMR-10RH-10RH-10
    MotorY160M2-2(30kw)Y160M2-2(30kw)Y160M2-2(37kw)
    Flow6T/h10T/h10T/h
    conveying pumpModelLCBS-6ALCBS-6ALCBS-6A
    MotorY132Ml-6(3kw)Y132Ml-6(4kw)Y132Ml-6(4kw)
    Flow6T/h10T/h10T/h

    Performance characteristics:

    • The emulsified bitumen production core component emulsifier (ie colloid mill) is developed by our company and adopts a unique stator-rotor clearance adjustment structure to maintain a very small stable gap. The specially treated stator and rotor have good wear resistance and corrosion resistance, ensuring emulsification effect and stability.

    • Equipped with a high-efficiency heat exchanger, the finished emulsified bitumen is cooled to normal temperature by a heat exchanger, which improves its storage stability and provides possibilities for continuous large-scale micro-surface construction.

    • Adopt PLC control to precisely control the bitumen content (oil-water ratio) of emulsified bitumen.

    • The heat transfer oil heating system is convenient, efficient and efficient, and can realize automatic temperature control.

    • All materials in contact with the emulsion are made of high quality stainless steel, which has good corrosion resistance and can be applied to various types of emulsified bitumen production.

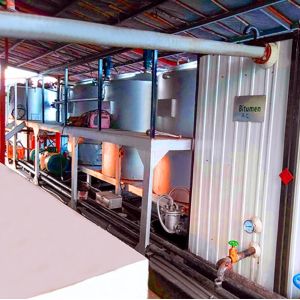

    Structure composition of emulsified bitumen equipment
