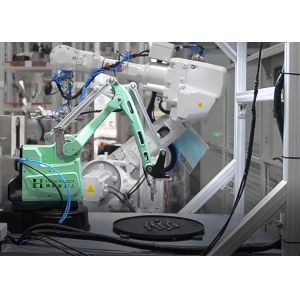

1 Kg Max Load Machine Loading And Unloading Industrial Robot
Product description
This 1 Kg Max Load Machine Loading And Unloading Industrial Robot is a smart manipulator, which are small in size and wireless
cloud-operable. The load of robot is 1KG, 4 dof, arm span of 540mm,
a repeat positioning accuracy of less than ±0.05mm, no control
cabinet and no reducer,which can realize drag teaching and network
remote control. Provide comprehensive and professional personalized
solutions for automotive parts, 3C electronics, unmanned retail,
mechanical processing, vocational education and other industries
and help enterprises, factories, shopping malls, schools and etc.to
achieve effective automation upgrades and empowerment and
efficiency.
Features
5DOF structural design,more flexiable
1 kg max payload
Affordable price
Free Android control software
Programming language: C++, C#,Python
Repeat positioning accuracy 0.05mm,more accurate.
Provide detailed user manual to learn how to programe and operate
robotic arms
Technical parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 5 |
| Installation | Floor / desktop |
| N.W/ G.W | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V 50 Hz |
| External communication | WIFI/Ethernet |
| Application | Industry, Academic, Teaching, Education |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5,can be expanded by 16 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Shipping List
| Name | Quantity |
| Robot arm | 1 |
| Power adapter | 1 |
| Emergency stop | 1 |
| Power cable | 1 |
Detailed images
