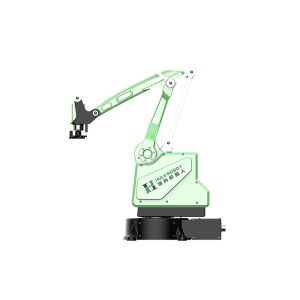

4dof Palletizer Robot Arm Producer 1kg Payload Mini Robot Arm
Product description:
The palletizing robot arm is an industrial robot that appeared
earlier. It can replace the heavy labor of people to realize the
mechanization and automation of production, and can operate in
harmful environments to protect personal safety.
This robot is small in size, easy to install and has no control
cabinet. It can be flexibly installed on the ground or desktop.High
repeatability positioning accuracy, this 1kg small-load industrial
robot is fully competent for the operations requiring high
repeatability and accuracy, which can improve the processing
quality of products,so it is suitable for palletizing of small
parts and small size products.
Feature:
1. The programming logic is simple,easy to learn and operate.
2. Control and drive integration.
3. The repeatable positioning accuracy is less than±0.05mm.
4. Wide range of applications.
5. Wireless tablet control.
6. Clear operation interface
Robot parameter
| Model | HK5404 |
| Working space | 540mm |
| Number of axis | 4 Axis |
| Installation | Floor/Table |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Small parts picking, loading, sorting,paletizing |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. Laptop parts grab
4. Loading and unloading
5. Vocational education
6. Visual position detection
7. Palletizing
8. Food processing
Detailed images
