    18Mpa Low Fuel Tractor Farm Construction Motor Grader

    Ask Lasest Price
    Brand Name : SCEC
    Model Number : 165
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 set/sets per month
    Delivery Time : 25-30 work days
    • Product Details
    • Company Profile

    18Mpa Low Fuel Tractor Farm Construction Motor Grader

    165 Powerful Low Fuel Tractor Farm Construction Motor Grader


    Product Description of 165 Powerful Low Fuel Tractor Farm Construction Motor Grader


    165 Powerful Low Fuel Tractor Farm Construction Motor Grader

    is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multifunction’s and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.


    The specification for 165 Powerful Low Fuel Tractor Farm Construction Motor Grader


    Technical Parameters
    Model165
    Operating weight15000kg
    Front axle load4150kg
    Rear axle load10850kg
    Max.forward speed40.4km/h
    Max.backward speed25.7km/h
    Speed gear numberF6/R3
    Turning radius7500mm
    Hydraulic system pressure18Mpa
    Blade length*height3660*610mm
    Front wheeltrack2150mm
    Rear wheeltrack2255mm
    Wheelbase5347mm
    Engine modelCUMMINS, 6BTA5.9
    Engine power125kw/170hp
    Overall dimension8305*2695*3420mm

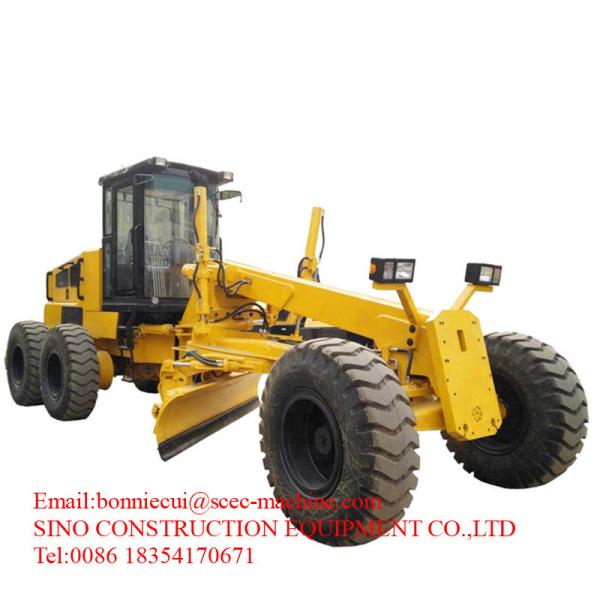

    The photo for 165 Powerful Low Fuel Tractor Farm Construction Motor Grader


    If this model 165 can not meet your requests, we have other models. When you send an inquiry, I would appreciate it if you tell me which model you are interested in:


    echnical Parameters Model135,180,220 Operating weight13800kg16000kg16900kg Front axle load4000kg5150kg5820kg Rear axle load9800kg10850kg11080kg Max.forward speed38.3km/h36/38.2km/h36.8km/h Max.backward speed24.4km/h25/24.5km/h24.8km/h Speed gear numberF6/R3F6/R3F6/R3 Turning radius7500mm7800mm7800mm Hydraulic system pressure18Mpa18Mpa18Mpa Blade length * height3660*610mm3965*610mm3965*610mm Front wheeltrack2150mm2150mm2150mm Rear wheeltrack2165mm2255mm2225mm Wheelbase5347mm5647mm5647mm Engine modelCUMMINS, 6BT5.9CUMMINS, 6BTA5.9CUMMINS, 6CTA8.3 Engine power97kw/132hp132kw/180hp160kw/220hp Overall dimension8270*2495*3390mm8605*2695*3420mm8270*2495*3390mm


    Product feature of 165 Powerful Low Fuel Tractor Farm Construction Motor Grader


    1. Power configuration is Cummins Diesel Engine inter-cooling supercharged diesel engine with strong power and reliable performance.

    2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.

    3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

    4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

    5. Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting, Patent hydraulically-operated pin drawing device is designed firstly in board.

    6. Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.

    7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.

    8. Hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA.

    9. It is optional for front bulldozing plate and rear ripper.
