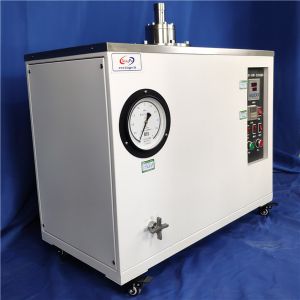

    IEC 60335-1 Clause 22.32 Oxygen Air Bomb Aging Tester Testing Electric Wire

    Ask Lasest Price
    Brand Name : Kingpo
    Certification : Calibration Certificate
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 3 sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    IEC 60335-1 Clause 22.32 Oxygen Air Bomb Aging Tester Testing Electric Wire


    IEC 60335-1 Clause 22.32 Oxygen Air Bomb Aging Tester Testing Electric Wire


    Description:

    This device is used to process the aging test for the electric wire, the insulation layer and sheath of the rubber( plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

    Confirm to Clause 22.32 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3 and etc.


    Technical parameters:

    Test objectRubber insulation parts of household appliance
    Reference standardIEC 60335-1
    TestAging test
    Power supply220V AC 50HZ
    Maximum Operating Pressure3.5MPa
    Secure Burst Pressure2.7~3.3MP
    Temperature-controlled rangeroom temperature~200℃
    Outer Chamber Dimensions820mm × 520mm × 860mm
    Chamber internal volume1.1L
    Heating Power1.2KW
    Temperature deviation±0.5℃
    Temperature ControlIntelligent control
    Air sourceCompressed air/oxygen (supplied by customers)
    Oxygen Bomb AgingThe test medium was oxygen, the temperature was 70℃, and the pressure was 2.1mpa
    Air Bomb AgingThe medium is air, the temperature is 127℃, the pressure is 0.55MPa
    MaterialInside chamber is made of 304 stainless steel and outer chamber is made of electrostatic spraying steel plate

    External structure


    1.Pressure gauge

    2.Intelligent temperature-controlled meter

    3,Timer

    4.The power switch

    5.Timer switch

    6.Exhaust switch

    7.Start

    8.Stop

    9.Pressure regulating valves



    Internal structure
