    63Hz two phase solid state relay

    2 Phase Solid State Relay AC two Phase SSR Solid State Relay


    Specification of 2 Phase Solid State Relay

    solid state relay PDF: https://maiimg.com/free/?e=dyPPp/s2DmrS66

    rectifer.pdf

    power controller.pdf

    Main Technical Par ameter of Solid State Contactore
    Main contacts: 16A. 25A. 40A. 50A(Controlled silicon output)
    Auxiliary contacts: NO, NC(2A, Contact type)
    Control mode: 5V-12VDC or 90-280VAC choose any
    Dimension: 96 x 68 x 60mm(lengh x wide x high)
    Installation size: 78x 57mm.4-M4
    Solid State Contactor Patent production
    As an electronic switch with the feature of no noise, no spark, no wear, it can directly replace electromagnetic relays.


    Main technical paramete

    Type

    SAT4016 SAT4025 SAT4040 SAT4050 SAT4060
    Load voltage range40- 530VAC
    Max Load current16A25A40A50A60A
    Isolation bet.In & outOptical isolation ≥2500VAC 1min
    Isolation to case≥2500VAC 1min
    Control voltage range12VDC & 110VAC/220VAC (need to choose)
    Control current5- 25mA (build-in constant current circuit)
    Turn-on voltage≤1.3VAC
    Off-state leakage≤7mA @ 220VAC
    Off-state dv/dt500v/μs
    On or off time10ms @ 50Hz
    Frequenty range47/63Hz
    Status indicatorLED
    Operating temperature-50~ 80℃
    Internal actual device24A41A60A80A90A
    ApplicationsMachine control, motor control, Electric heating, etc.

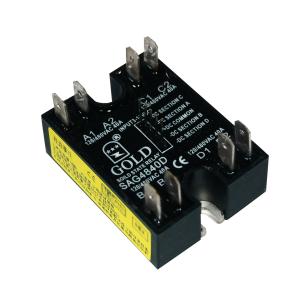

    ACSSR of SA D Double-channel
    Performance and Application
    ◆ Non contact switch, zero current turn off ◆ Used for programmable control, various automatic control equipment and computer output control interface etc
    ◆ Non contactor switch,millions of times swith lifetime ◆ Used for various kinds of double channel control occasions, especially suitable for single- _phase motor positive inversion control


    Performance Parameter


    Main technical paramete

    Type

    SAD4805 SAD4810 SAD4815 SAD4825 SAD4840
    Load voltage range40- 530VAC
    Max Load current10A15A20A25A40A60A80A
    Isolation to case≥2500VAC 1min
    Isolation bet.In & outOptical isolation ≥2500VAC 1min
    Control voltage range5-15Vor 15-32V
    Input Control Current5-25mA
    OutputBCR output, Zero switching
    Turn-on voltage≤1.2V
    Off-state leakage≤2mA
    On or off time10ms @ 50Hz
    Internal actual device (Triac)16A20A24A26A41A

    80A

    Two SCR

    100A

    Two SCR

    ApplicationsMotor reversing control, Dual Control, etc.





    Our Company

    Founded in 1992, Wuxi Gold Control Technology Co., Ltd., a private high tech company, is specialized in the research and production of Solid State Relays, Electronic Semiconductors, DC Motor Drivers and AC Voltage Regulation Devices.

    For the past 10 consecutive years, our company has been qualified as "Jiangsu's private high tech business". We have also been given the honor as "Wuxi's 10 Best Private Science & Technology Enterprises" for years.

    Our products, the electronic modules with the brand of Gold, have been listed among "Wuxi's Renowned Products".Our company has 5 patents on Solid State Relays. Our products are widely used in various industrial automation control areas like chemical fiber machinery, temperature control of electric furnace, rubber & plastic machinery, fountain control and digital-controlled machinery, and are sold to Europe, America, Korea and Turkey.



    Our Factory

    Our factory can produce about 50,000 pieces each month. We can give you good quality and reasonable prices. We have 20 professional research people who have all been graduated from famous universities and colleges. When producing, we have strict tests: self-test, inter-test and special-test.



    Our Certificate

    Our products, the electronic modules with the brand of Gold, have been listed among "Wuxi's Renowned Products".Our company has 5 patents on Solid State Relays. Our products are widely used in various industrial automation control areas like chemical fiber machinery, temperature control of electric furnace, rubber & plastic machinery, fountain control and digital-controlled machinery, and are sold to Europe, America, Korea and Turkey.

    Our company passed the Certification of ISO9001:2000 in 2000. Our main products have been given CE Certificate of European Union, UL,CUL and RoHS Certificates.
