Automatic Vertical Insulated Glass Sealing Machine For Polysulfide
Glue and Silicone Glue
Product Description of sealing robot
Automatic Vertical Insulated Glass Sealing Machine can
automatically recognizing glass size by sensors, don't need input
glass size on the touch screen. The sealing robot can coat 8 kinds
of shaped IGU.
Product Detail :
1.Hollow Glass sealing machine adopt 8 sets of Japan ANCHUAN servo
control system with stable performance.
2.Glass corners are full without air bubbles, smooth surface, no
corner trimming required
3.Glue system can be selected
Two Sets of Glue Systems Equipped with two sets of A components and
two sets of B components, which can be used for two kinds of
different sealants, such as silicone rubber, polysulfide rubber,
silicone structural adhesive and so on.
One Set of Glue System Equipped with single A component and single
B component.
4. Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
5. Timing belt
Time belt device ensure that glass can be smooth transmission and
positioned accurately.
6. Back Glue Device
When the pressure increasing, more Glue B will flow back
automatically, saving materials.
Technical parameters
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Related Product

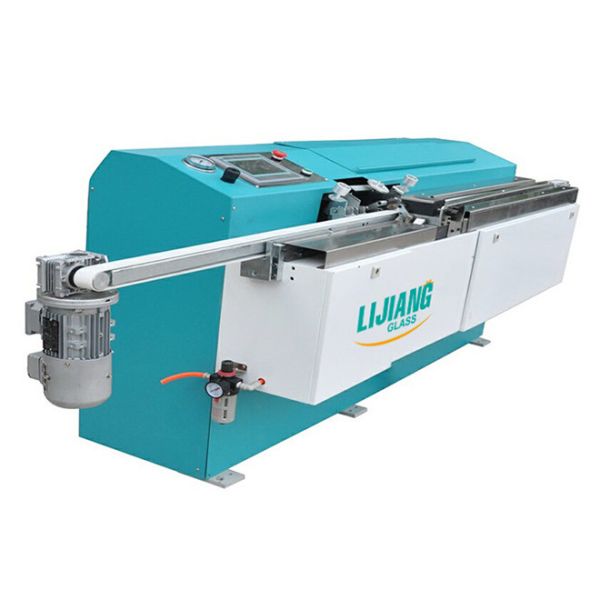

Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• with preheating function
• With exhaust inflatable function, improve the quality of sealing
and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
• Automatically identify the width of aluminum bar, the glue nuzzle
can be automatic adjust
• The critical part of the hydraulic system using German imports of
components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
