IG Glass Edge Polishing Machine Glass Edge Grinding Machine
1.Overview of IG Glass Edge Polishing Machine
IG Glass Edge Polishing Machine is used to carry out rough grinding
and chamfering after the cutting of the original glass sheet. With
easy and simple operation, low labor intensity and high production
efficiency, it is indispensable for safety production of all kinds
of windows and doors.
IG Glass Edge Polishing Machine is suitable for the edge-finishing of the raw glass for insulating
glass.
2.Features of IG Glass Edge Polishing Machine
1. IG Glass Edge Polishing Machine is used for polishing single
glass, to prevent to hurt workman from sharp glass edge
2. IG Glass Edge Polishing Machine adopts type of ‘x’ to polish the
up and down edge at the same time
3. IG Glass Edge Polishing Machine can be Easy operating, simple
and flexible
4.IG Glass Edge Polishing Machinee Used for Insulating glass
production machine
Technical parameter
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
- Condition: New
- Machine Type: Glass Edge Polishing Machine
- Place of Origin: China (Mainland)
- Brand Name: LIJIANG
- Model Number: LJKBM95
- Voltage: 380 V
- Power(W):0.75KW
- Dimension(L*W*H): 2000*1200*820mm
- Weight: 80 kg
- Certification: CE
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Max. dimension of glass to be grind: 2000 x 2000mm
Related Products
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |

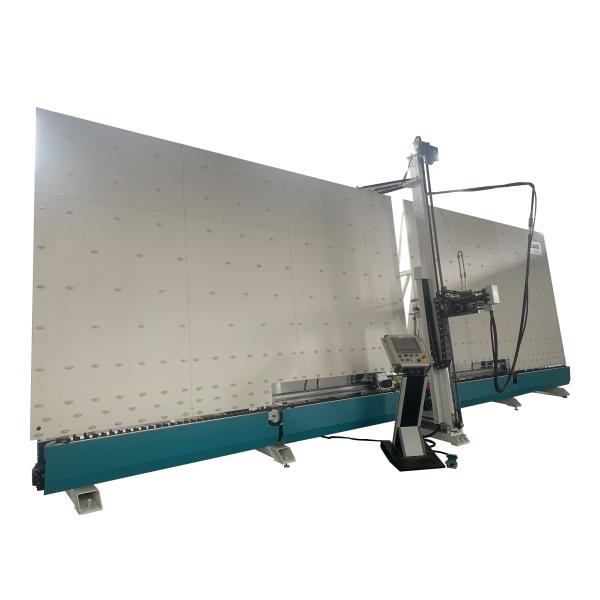

Vertical Insulating Glass Sealing Robot LJTJ2540
