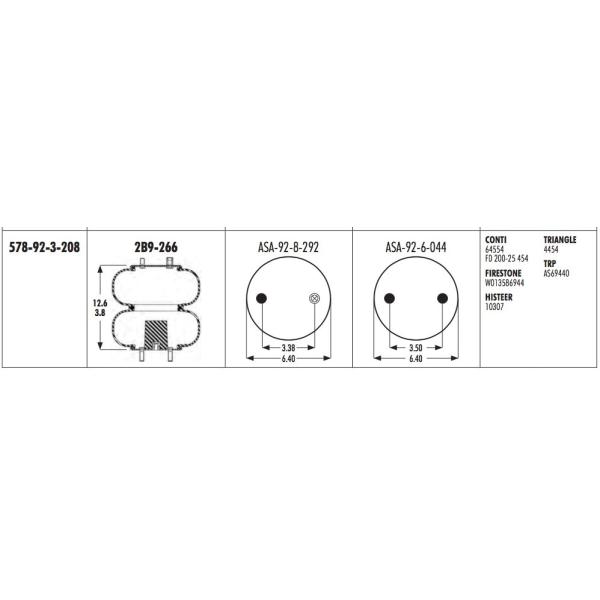

578-92-3-208 Goodyear Air Spring 2B9-266 FIRESTONE W013586944 TRIANGLE 4454
Goodyear Air Spring 2B9-266 Specific parameters and specifications:
Top Plate Hole/Stud: 3 Pieces
Top Plate Hole/Stud: 2 PiecesX3/8-16UNC
Bottom Plate Hole/Stud: 2 PiecesX3/8-16UNC
Air inlet:1/4NPTF
Top Cover Plate: 6.4 inches / 160 mm
Bottom Cover Plate Diameter: 6.4 inches / 160 mm
Collapsed Height: 3.8 inches / 96 mm
Screw Center Distance of Top Cover Plate : 3.5 inches / 89 mm
Screw Center Distance of Bottom Cover Plate : 3.5 inches / 89 mm
Rubber Bellows Natural Diameter : 232.5 mm
The Working Stroke : MAX 309 mm to MIN 96 mm / MAX 12.2 inches to MIN 3.8 inches
Maximum Height : 12.2 inches / 309 mm
Minimum Height :3.8 inches / 96 mm
Compression Height :8.3 inches / 213 mm
Rubber Bellows Natural :9.2 inches /240 mm
Goodyear Air Spring 2B9-266 Cross others OEM
CONTI
64554
FD 200-25 454
FIRESTONE
W013586944
HISTEER
10307
TRIANGLE
4454
TRP
AS69440
CONTITECH Part NO.:64554
CONTITECH Part NO.:FD 200-25 454
CONTITECH Part NO.:FD200-25 454
CONTITECH Part NO.:FD200 25 454
FIRESTONE Part NO.:W013586944
FIRESTONE Part NO.:W01-358-6944
FIRESTONE Part NO.:W01 358 6944
HISTEER Part NO.:10307
TRIANGLE Part NO.:4454
TRP Part NO.:AS69440
How is the Air spring works?
Rubber air spring work, the cavity filled with compressed air to form a compressed air column. With the increase of the vibration load, the height of the spring decreases, the volume of the cavity decreases, the stiffness of the spring increases, and the effective bearing area of the inner air column increases. At this moment, the bearing capacity of the spring increases.
When the vibration load decreases, the height of the spring increases, the volume of the cavity increases, the stiffness of the spring decreases, and the effective bearing area of the cavity air column decreases. At this time, the bearing capacity of the spring decreases. In this way, the air spring in an effective stroke, the air spring height, lumen volume, carrying capacity with the increasing and decreasing of the vibration load occurred smooth and flexible transmission, amplitude and vibration load control.
You can also increase, reduce the amount of inflation method to adjust the stiffness of the spring and the carrying capacity of the size, but also can be attached to the auxiliary chamber to achieve automatic control.
| 57892226600000 | 57892226600000 | 20094500 | Y | 2B9-266 | 2B9-266 |
| 57892226600004 | 2B9-266 | 20112682 | N | 2B9-266 Bellows Air Spring | 2B9-266 Bellows Air Spring |
| 57892226700000 | 57892226700000 | 20094501 | Y | 2B9-267 | 2B9-267 |
| 57892226900000 | 57892226900000 | 20099744 | N | 2B9-269 | 2B9-269 |
| 57892226900019 | 57892226900019 | 20094502 | Y | ENIDINE YI-2B9-269 | ENIDINE YI-2B9-269 |
| 57892227000000 | 57892227000000 | 20094503 | Y | 2B9-270 | 2B9-270 |
| 57892227000004 | 2B9-270 | 20113233 | N | 2B9-270 Bellows Air Spring | 2B9-270 Bellows Air Spring |
| 57892227100000 | 57892227100000 | 20094504 | Y | 2B9-271 | 2B9-271 |
| 57892227200000 | 57892227200000 | 20094505 | Y | 2B9-272 | 2B9-272 |
| 57892227300000 | 57892227300000 | 20468329 | Y | 2B9-273 | 2B9-273 |
| 57892227300019 | 57892227300019 | 20106773 | Y | ENIDINE YI-2B9-273 | ENIDINE YI-2B9-273 |
| 57892227430000 | 57892227430000 | 20113331 | Y | 2B9-274 | 2B9-274 |
| 57892227500000 | 57892227500000 | 20112684 | Y | 2B9-275 | 2B9-275 |
| 57892227500004 | 57892227500004 | 20808326 | Y | 2B9-275 Bellows Air Spring | 2B9-275 Bellows Air Spring |
| 57892227500019 | 57892227500019 | 20112685 | Y | ENIDINE YI-2B9-275 | ENIDINE YI-2B9-275 |
| 57892227700000 | 57892227700000 | 20116850 | Y | 2B9-277 | 2B9-277 |
| 57892227700004 | 2B9-277 | 20116851 | N | 2B9-277 | 2B9-277 |
| 57892227800000 | 57892227800000 | 20136848 | Y | 2B9-278 | 2B9-278 |
| 57892227800004 | 2B9-278 | 20136849 | N | 2B9-278 | 2B9-278 |
| 57892227900000 | 57892227900000 | 20139902 | Y | 2B9-279 | 2B9-279 |
| 57892228000000 | 57892228000000 | 20149466 | Y | 2B9-280 | 2B9-280 |
| 57892228000004 | 2B9-280 | 20149467 | N | 2B9-280 Bellows Air Spring | 2B9-280 Bellows Air Spring |
| 57892228100000 | 57892228100000 | 20149460 | Y | 2B9-281 | 2B9-281 |
| 57892228100004 | 2B9-281 | 20149461 | N | 2B9-281 | 2B9-281 |
| 57892228300000 | 57892228300000 | 20149464 | Y | 2B9-283 | 2B9-283 |
| 57892228300004 | 57892228300004 | 20149465 | Y | 2B9-283 | 2B9-283 |
| 57892228600000 | 57892228600000 | 20168826 | Y | 2B9-286 | 2B9-286 |
| 57892228600004 | 2B9-286 | 20168880 | N | 2B9-286 | 2B9-286 |
| 57892228800000 | 57892228800000 | 20174047 | Y | 2B9-288 | 2B9-288 |
| 57892228800004 | 2B9-288 | 20174048 | N | 2B9-288 Bellows Air Spring | 2B9-288 Bellows Air Spring |
| 57892229000000 | 57892229000000 | 20177683 | Y | 2B9-290 | 2B9-290 |
| 57892229000004 | 2B9-290 | 20177686 | N | 2B9-290 | 2B9-290 |
| 57892229100000 | 57892229100000 | 20190132 | Y | 2B9-291 | 2B9-291 |
| 57892229100004 | 2B9-291 | 20190124 | N | 2B9-291 | 2B9-291 |
| 57892229500000 | 57892229500000 | 20258853 | Y | 2B9-295 | 2B9-295 |
| 57892229500004 | 57892229500004 | 20258854 | Y | 2B9-295 | 2B9-295 |
| 57892229600000 | 57892229600000 | 20268043 | Y | 2B9-296 | 2B9-296 |
| 57892229600004 | 2B9-296 | 20268044 | N | 2B9-296 Bellows Air Spring | 2B9-296 Bellows Air Spring |
| 57892229700000 | 57892229700000 | 20264980 | Y | 2B9-297 | 2B9-297 |
| 57892229700004 | 2B9-297 | 20264983 | N | 2B9-297 | 2B9-297 |
| 57892229800000 | 57892229800000 | 20264762 | Y | 2B9-298 | 2B9-298 |
| 57892229800004 | 2B9-298 | 20264763 | N | 2B9-298 | 2B9-298 |
