250 Model 1-2t/H Ring Die Chicken Pig Livestock Feed Pellet Machine
Introduction for Ring Die Chicken Pig Livestock Feed Pellet
Machine:
This series model 250 ring die chicken pig livestock feed pellet
machine is mainly suitable for rural farmers and small farms, pig
farms, chicken factories, duck factories, etc.
The ring die chicken pig livestock feed pellet machine is mainly
designed and manufactured for making concentrate feed granules. The
product has high forming rate and good quality. The ring die
chicken pig livestock feed pellet machine is economical and easy to
operate.
The ring die chicken pig livestock feed pellet machine is the
choice of users of concentrate feed.
Main Parameters of Ring Die Chicken Pig Livestock Feed Pellet Machine:
| Model | Capacity (t/h) | Power (kw) | Feeding Power (kw) | Conditioner Power (kw) | Weight (kg) |
| SZLH250 | 1-2t/h | 22kw | 0.55kw | 1.5kw | 1000kg |
| SZLH320 | 3-5t/h | 37kw | 1.5kw | 2.2kw | 2500kg |
| SZLH350 | 5-8t/h | 55kw | 1.5kw | 3.0kw | 3500kg |
| SZLH420 | 8-12t/h | 110kw | 2.2kw | 7.5kw | 4200kg |
Application of Ring Die Chicken Pig Livestock Feed Pellet Machine:
The ring die chicken pig livestock feed pellet machine can produce feed pellet for chicken, pig, duck, sheep, and other
animals.
Raw Material Applicable for Ring Die Chicken Pig Livestock Feed Pellet Machine:
Corn, bran, soybean meal, straw, grass, rice husk, etc.
Features of Ring Die Chicken Pig Livestock Feed Pellet Machine:
1. Feeder, conditioner, and chute of this animal feed pellet
machine are all made of stainless steel for durability.
2. The feeding system adopts electromagnetic speed control design,
which is convenient in speed adjusting and fully adapts to the
requirements of different materials.
3. The main drive adopts high-precision gear transmission, and the
ring die adopts the quick release hoop type, which is easy to
disassemble and the output is increased by about 20% compared with
the belt drive type.
4. Safe and reliable with safety devices such as strong magnetic
security magnets and overload protection device.
Structure of Ring Die Chicken Pig Livestock Feed Pellet Machine:
1. Screw feeder motor
2. Screw feeder
3. Conditioner
4. Conditioner motor
5. Pellet machine main motor(Siemens)
6. Pelleting chamber(die and roller inside)
7. Machine base

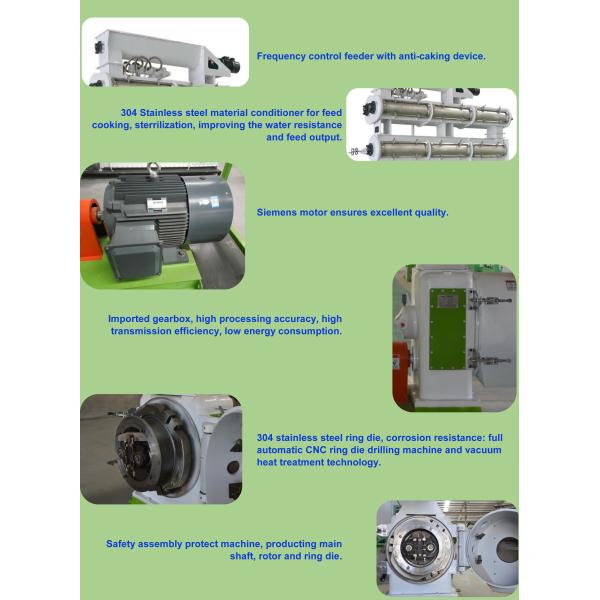

Main Parts of Ring Die Chicken Pig Livestock Feed Pellet Machine:
