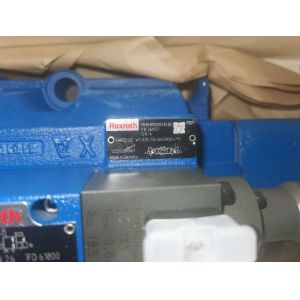

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

Name: R900923538 4WRZ32W1520556AG24NZ4M 4WRZ32W15205X6AG24NZ4M Proportional Directional Valve
Brand: Rexroth
Price: 1 USD

Ask Lasest Price
Brand Name :	Rexroth
Model Number :	R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M
Price :	On request
Payment Terms :	T/T, Western Union
Supply Ability :	100PCS per month
Delivery Time :	7-10days

Add to Cart

Product Details
Company Profile

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

Rexroth 4WRZ Series Proportional directional valves, pilot operated, without electrical position feedback, without integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min

Features
Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For appliSAARions outside these parameters, please consult us!

Technical data

General

Type			4WRZ
Size			10	16	25	32	52
Installation position			any, preferably horizontal
Ambient temperature range		°C	-20 … +70
Storage temperature range		°C	-20 … +80
Weight	For subplate mounting	kg	7.8	11.9	18.2	42.2	79.5
	for flange connection	kg					77.5
	with "D3"	kg	8.3	12.4	18.7	42.7	80
Sine test according to DIN EN 60068-2-6			10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64			20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27			Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30			Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours

Hydraulic

Size				10	16	25	32	52
Maximum operating pressure			bar	315	350
Operating pressure range	External pilot oil supply		bar	30 … 100				20 … 100
	Pilot control valve without "D3", internal pilot oil return		bar	30 … 100
	Internal pilot oil supply		bar	100 … 315	100 … 350
Maximum return flow pressure	Port T and R, external pilot oil return		bar	315	250		150	250
	Port T, internal pilot oil return		bar	30
	Port Y		bar	30
Maximum flow			l/min	170	460	870	1600	2800
Nominal flow			l/min	25 50 85	100 125 150 180	220 325	360 520	1000
Pilot flow	input signal 0 → 100%	Port X and Y	l/min	3.5	5.5	7	15.9	7
Pilot volume	switching process 0 → 100%		cm³	1.7	4.6	10	26.5	54.3
Hydraulic fluid temperature range			°C	-20 … +80
Hydraulic fluid temperature range	preferably		°C	-40 … +50
Viscosity range			mm²/s	20 … 380
Viscosity range	preferably		mm²/s	30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ¹⁾	Pilot control valve			Class 18/16/13 according to ISO 4406 (c)
	Main valve			Class 20/18/15 according to ISO 4406 (c)
Hysteresis			%	≤ 6

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRZ32E1 4WRZ32E360 4WRZ32EA520 4WRZ32W520 4WRZ32W6 4WRZ32W8 4WRZ32W9 Proportional Directional Valves on Sale, Short lead time, Best price!!!

R900968140	4WRZ32E1-360-5X/6A24N9ETK4/D3M
R900939989	4WRZ32E1-360-5X/6A24N9ETK4/M
R900967120	4WRZ32E1-360-5X/6A24N9K4/MR
R900703858	4WRZ32E1-360-5X/6A24N9TK4/D3M
R900963653	4WRZ32E1-360-5X/6A24NETK4/D3M
R900586302	4WRZ32E1-360-5X/6A24NETZ4/D3M
R900505356	4WRZ32E1-360-5X/6A24NEZ4/D3M
R900951638	4WRZ32E1-360-5X/6A24NK4/D3M
R900949121	4WRZ32E1-360-5X/6A24NK4/M
R900929751	4WRZ32E1-360-5X/6A24NTZ4/D3M
R900500338	4WRZ32E1-360-5X/6A24NZ4/D3M
R900522079	4WRZ32E1-360-5X/6A24NZ4/M
R900587753	4WRZ32E1-360-5X/6A24Z4/M
R900934637	4WRZ32E1-520-5X/6A24N9EK4/D3M
R987013253	4WRZ32E1-520-5X/6A24N9ETK4/D3M
R900775808	4WRZ32E1-520-5X/6A24N9ETK4/D3M
R900550184	4WRZ32E1-520-5X/6A24N9ETZ4/D3M
R900524321	4WRZ32E1-520-5X/6A24N9EZ4/D3M
R900977723	4WRZ32E1-520-5X/6A24N9K4/D3M
R900977725	4WRZ32E1-520-5X/6A24N9K4/D3V
R978914239	4WRZ32E1-520-5X/6A24N9K4/M
R900967046	4WRZ32E1-520-5X/6A24N9K4/MR
R978919802	4WRZ32E1-520-5X/6A24N9K4/V
R900512966	4WRZ32E1-520-5X/6A24N9Z4/D3M
R900513555	4WRZ32E1-520-5X/6A24N9Z4/M
R900928093	4WRZ32E1-520-5X/6A24NEK4/D3M
R978025291	4WRZ32E1-520-5X/6A24NEK4/D3V
R900952844	4WRZ32E1-520-5X/6A24NETK4/D3M
R900588223	4WRZ32E1-520-5X/6A24NETZ4/D3M
R900587315	4WRZ32E1-520-5X/6A24NETZ4/M
R900500102	4WRZ32E1-520-5X/6A24NEZ4/D3M
R900505564	4WRZ32E1-520-5X/6A24NEZ4/D3M-347
R900916648	4WRZ32E1-520-5X/6A24NEZ4/D3V
R900587763	4WRZ32E1-520-5X/6A24NEZ4/D3VR
R900587126	4WRZ32E1-520-5X/6A24NEZ4/M
R900927683	4WRZ32E1-520-5X/6A24NK4/M
R900921435	4WRZ32E1-520-5X/6A24NTK4/D3M
R900247345	4WRZ32E1-520-5X/6A24NTK4/M
R978911791	4WRZ32E1-520-5X/6A24NTK4/V
R900588851	4WRZ32E1-520-5X/6A24NTZ4/D3M
R900529245	4WRZ32E1-520-5X/6A24NTZ4/M
R900593765	4WRZ32E1-520-5X/6A24NTZ4/M-66
R900588030	4WRZ32E1-520-5X/6A24NZ4/D3M
R900586783	4WRZ32E1-520-5X/6A24NZ4/M
R900587754	4WRZ32E1-520-5X/6A24Z4/M
R900562625	4WRZ32E2-520-5X/6A24EXT/D3M
R900905398	4WRZ32E2-520-5X/6A24N9EZ4/D3M
R900512480	4WRZ32E2-520-5X/6A24N9EZ4/M
R900900779	4WRZ32E2-520-5X/6A24N9Z4/D3M
R900971355	4WRZ32E2-520-5X/6A24NEK4/D3M
R978006498	4WRZ32E2-520-5X/6A24NETK4/V
R900587212	4WRZ32E2-520-5X/6A24NETZ4/D3M
R900525505	4WRZ32E2-520-5X/6A24NETZ4/M
R900591622	4WRZ32E2-520-5X/6A24NETZ4/V
R978018053	4WRZ32E2-520-5X/6A24NK4/D3M
R900970731	4WRZ32E2-520-5X/6A24NK4/M
R900524026	4WRZ32E2-520-5X/6A24NZ4/D3M
R900593521	4WRZ32E2-520-5X/6A24NZ4/D3V
R900587755	4WRZ32E2-520-5X/6A24NZ4/M
R900966489	4WRZ32E3-360-5X/6A24N9EK4/M
R900560819	4WRZ32E3-360-5X/6A24N9EZ4/M
R900537007	4WRZ32E3-360-5X/6A24NEZ4/D3MR
R900245106	4WRZ32E3-520-5X/6A24N9EK4/D3M
R900935062	4WRZ32E3-520-5X/6A24N9EK4/V
R900959354	4WRZ32E3-520-5X/6A24N9ETK4/D3M
R900770465	4WRZ32E3-520-5X/6A24N9ETK4/M
R900569158	4WRZ32E3-520-5X/6A24N9EZ4/D3M
R900942044	4WRZ32E3-520-5X/6A24N9K4/D3M
R900511410	4WRZ32E3-520-5X/6A24N9Z4/M
R900966150	4WRZ32E3-520-5X/6A24NEK4/M
R900941356	4WRZ32E3-520-5X/6A24NETK4/M
R900737960	4WRZ32E3-520-5X/6A24NETK4/V
R900502352	4WRZ32E3-520-5X/6A24NETZ4/D3M
R900546921	4WRZ32E3-520-5X/6A24NETZ4/D3M-80
R900534071	4WRZ32E3-520-5X/6A24NETZ4/D3V
R900596381	4WRZ32E3-520-5X/6A24NETZ4/M
R900575925	4WRZ32E3-520-5X/6A24NETZ4/V
R900561900	4WRZ32E3-520-5X/6A24NEZ4/D3M
R900534911	4WRZ32E3-520-5X/6A24NEZ4/D3MR
R900594266	4WRZ32E3-520-5X/6A24NEZ4/M
R900564747	4WRZ32E3-520-5X/6A24NEZ4/V
R900717052	4WRZ32E3-520-5X/6A24NK4/D3M
R900960624	4WRZ32E3-520-5X/6A24NK4/M
R900524267	4WRZ32E3-520-5X/6A24NTZ4/D3M-80
R900591528	4WRZ32E3-520-5X/6A24NZ4/D3M
R900550060	4WRZ32E3-520-5X/6A24NZ4/D3M-80
R900590101	4WRZ32E3-520-5X/6A24NZ4/M
R900945644	4WRZ32E3-520-5X/E/M
R900503077	4WRZ32E360-5X//V
R900588220	4WRZ32E360-5X/6A24ETZ4/D3M
R900503076	4WRZ32E360-5X/6A24ETZ4/M
R900952194	4WRZ32E360-5X/6A24EXET/D3M
R900740907	4WRZ32E360-5X/6A24N9EK4/D3M
R900966491	4WRZ32E360-5X/6A24N9EK4/M
R978911217	4WRZ32E360-5X/6A24N9ETK4/M
R900929687	4WRZ32E360-5X/6A24N9K4/D3MR
R900976234	4WRZ32E360-5X/6A24N9K4/D3V
R900567137	4WRZ32E360-5X/6A24N9TZ4/D3M
R900551282	4WRZ32E360-5X/6A24N9Z4/D3M
R900533460	4WRZ32E360-5X/6A24N9Z4/M
R900967720	4WRZ32E360-5X/6A24NEK4/D3M
R900772943	4WRZ32E360-5X/6A24NETK4/D3M
R900512081	4WRZ32E360-5X/6A24NETZ4/D3M
R900587343	4WRZ32E360-5X/6A24NETZ4/M
R900504608	4WRZ32E360-5X/6A24NEZ4/D3M
R900528977	4WRZ32E360-5X/6A24NEZ4/D3MR
R900511389	4WRZ32E360-5X/6A24NEZ4/M
R900735038	4WRZ32E360-5X/6A24NK4/D3M
R900979445	4WRZ32E360-5X/6A24NK4/M
R900779030	4WRZ32E360-5X/6A24NTK4/D3M
R900958044	4WRZ32E360-5X/6A24NTK4/M
R900521578	4WRZ32E360-5X/6A24NTZ4/M
R900588339	4WRZ32E360-5X/6A24NZ4/D3M
R900901950	4WRZ32E360-5X/6A24NZ4/D3V
R900592069	4WRZ32E360-5X/6A24NZ4/M
R900546926	4WRZ32E360-5X/6A24Z4/M-402
R900503074	4WRZ32E520-5X//M
R900566985	4WRZ32E520-5X/6A24ETZ4/M
R900952196	4WRZ32E520-5X/6A24EXET/D3M
R900711780	4WRZ32E520-5X/6A24EXT/D3M
R900964701	4WRZ32E520-5X/6A24K4/M
R900935065	4WRZ32E520-5X/6A24N9EK4/D3V
R900738694	4WRZ32E520-5X/6A24N9EK4/M
R900767101	4WRZ32E520-5X/6A24N9ETK4/D3M
R900952055	4WRZ32E520-5X/6A24N9ETK4/M
R900521079	4WRZ32E520-5X/6A24N9ETZ4/D3M
R901111185	4WRZ32E520-5X/6A24N9K4/D3M
R900617663	4WRZ32E520-5X/6A24N9K4/M
R900754005	4WRZ32E520-5X/6A24N9K4/V
R900930810	4WRZ32E520-5X/6A24N9TK4/MR
R900918920	4WRZ32E520-5X/6A24N9TZ4/D3M
R900598738	4WRZ32E520-5X/6A24N9Z4/D3M
R900568238	4WRZ32E520-5X/6A24N9Z4/M
R900554547	4WRZ32E520-5X/6A24N9Z4/V
R900923146	4WRZ32E520-5X/6A24NEK4/D3M
R900700612	4WRZ32E520-5X/6A24NEK4/M
R900551279	4WRZ32E520-5X/6A24NEK4/V
R900707915	4WRZ32E520-5X/6A24NETK4/D3M
R978025464	4WRZ32E520-5X/6A24NETK4/D3V
R900925893	4WRZ32E520-5X/6A24NETK4/M
R900951561	4WRZ32E520-5X/6A24NETK4/MR
R900925895	4WRZ32E520-5X/6A24NETK4/V
R900587581	4WRZ32E520-5X/6A24NETZ4/D3M
R900912846	4WRZ32E520-5X/6A24NETZ4/D3V
R900593585	4WRZ32E520-5X/6A24NETZ4/M
R900535181	4WRZ32E520-5X/6A24NETZ4/V
R900589654	4WRZ32E520-5X/6A24NEZ4/D3M
R900928328	4WRZ32E520-5X/6A24NEZ4/D3MR
R900561803	4WRZ32E520-5X/6A24NEZ4/D3V
R900591719	4WRZ32E520-5X/6A24NEZ4/D3VR
R900504605	4WRZ32E520-5X/6A24NEZ4/M
R900513020	4WRZ32E520-5X/6A24NEZ4/V
R900925400	4WRZ32E520-5X/6A24NK4/D3M
R900921737	4WRZ32E520-5X/6A24NK4/M
R900979470	4WRZ32E520-5X/6A24NK4/V
R900979683	4WRZ32E520-5X/6A24NTK4/D3M
R900716038	4WRZ32E520-5X/6A24NTK4/M
R978912856	4WRZ32E520-5X/6A24NTK4/V
R900595333	4WRZ32E520-5X/6A24NTZ4/D3M
R900578227	4WRZ32E520-5X/6A24NTZ4/D3M-80
R900587902	4WRZ32E520-5X/6A24NTZ4/M
R900597920	4WRZ32E520-5X/6A24NTZ4/M-66
R900594085	4WRZ32E520-5X/6A24NZ4/D3M
R900596955	4WRZ32E520-5X/6A24NZ4/D3M-154
R900552221	4WRZ32E520-5X/6A24NZ4/D3V
R900586835	4WRZ32E520-5X/6A24NZ4/M
R900934574	4WRZ32E520-5X/6A24NZ4/M-125
R900596960	4WRZ32E520-5X/6A24NZ4/M-347
R900524643	4WRZ32E520-5X/6A24NZ4/V
R900570792	4WRZ32E520-5X/6A24TZ4/M
R900509157	4WRZ32E520-5X/6A24Z4/M
R900504130	4WRZ32E520-5X/6A24Z4/M-402
R900517927	4WRZ32E520-5X/E/M
R900519166	4WRZ32E520-5X/ET/M
R900592624	4WRZ32E520-5X/T/M
R900588921	4WRZ32EA000-5X/6A24NEZ4/M-11
R900909810	4WRZ32EA000-5X/6A24NEZ4/V-11
R900907084	4WRZ32EA520-5X/6A24N9Z4/M
R900717802	4WRZ32EA520-5X/6A24NEK4/M
R900536292	4WRZ32EA520-5X/6A24NEZ4/M
R900973265	4WRZ32EA520-5X/6A24NTK4/M
R900536633	4WRZ32EA520-5X/6A24NTZ4/M
R900598923	4WRZ32EA520-5X/6A24NZ4/D3M
R900534564	4WRZ32EA520-5X/6A24NZ4/M
R900536338	4WRZ32EB360-5X/6A24NZ4/M
R900568585	4WRZ32EB360-5X/6A24Z4/D3M
R900937435	4WRZ32EB520-5X//M
R900525922	4WRZ32EB520-5X/6A24N9Z4/D3M-68
R900901972	4WRZ32EB520-5X/6A24NEZ4/D3M
R900522892	4WRZ32EB520-5X/6A24NEZ4/M
R900767802	4WRZ32EB520-5X/6A24NK4/D3M
R900959572	4WRZ32EB520-5X/6A24NK4/M
R900977288	4WRZ32EB520-5X/6A24NK4/V
R900515639	4WRZ32EB520-5X/6A24NTZ4/D3M
R900917156	4WRZ32EB520-5X/6A24NTZ4/M
R900526599	4WRZ32EB520-5X/6A24NZ4/D3M
R900569581	4WRZ32EB520-5X/6A24NZ4/M
R900589427	4WRZ32R520-5X/6A24N9EZ4/D3M
R900900828	4WRZ32W1-360-5X/6A24EZ4/D3M
R900957410	4WRZ32W1-360-5X/6A24N9EK4/D3M
R901010269	4WRZ32W1-360-5X/6A24N9EK4/D3V
R900588847	4WRZ32W1-360-5X/6A24N9EZ4/D3M
R900927975	4WRZ32W1-360-5X/6A24N9EZ4/M
R900956925	4WRZ32W1-360-5X/6A24N9K4/D3M
R900951108	4WRZ32W1-360-5X/6A24N9K4/D3V
R900920329	4WRZ32W1-360-5X/6A24N9K4/M
R900519492	4WRZ32W1-360-5X/6A24N9Z4/D3M
R900534379	4WRZ32W1-360-5X/6A24N9Z4/D3MR
R900951992	4WRZ32W1-360-5X/6A24NEK4/D3M
R900925478	4WRZ32W1-360-5X/6A24NEK4/D3MR
R900513425	4WRZ32W1-360-5X/6A24NETZ4/D3M
R900524375	4WRZ32W1-360-5X/6A24NEZ4/D3M
R900525978	4WRZ32W1-360-5X/6A24NEZ4/D3MR
R900522424	4WRZ32W1-360-5X/6A24NEZ4/M
R900933804	4WRZ32W1-360-5X/6A24NK4/D3M
R900941296	4WRZ32W1-360-5X/6A24NK4/M
R900960140	4WRZ32W1-360-5X/6A24NTK4/D3M
R900956347	4WRZ32W1-360-5X/6A24NTK4/M
R900565216	4WRZ32W1-360-5X/6A24NTZ4/D3M
R900501479	4WRZ32W1-360-5X/6A24NTZ4/M
R900519127	4WRZ32W1-360-5X/6A24NZ4/D3M
R900916729	4WRZ32W1-360-5X/6A24NZ4/D3MR
R900586429	4WRZ32W1-360-5X/6A24NZ4/D3V
R900598986	4WRZ32W1-360-5X/6A24NZ4/M
R900560917	4WRZ32W1-360-5X/6A24NZ4/M-80
R900527242	4WRZ32W1-360-5X/6A24Z4/M
R900503075	4WRZ32W1-520-5X//M
R900900168	4WRZ32W1-520-5X/6A24EZ4/D3M
R901054821	4WRZ32W1-520-5X/6A24N9EK4/D3M
R978909357	4WRZ32W1-520-5X/6A24N9EK4/D3V
R900942136	4WRZ32W1-520-5X/6A24N9ETK4/D3MR
R900961860	4WRZ32W1-520-5X/6A24N9ETK4/D3V
R900940785	4WRZ32W1-520-5X/6A24N9ETK4/MR
R900516501	4WRZ32W1-520-5X/6A24N9ETZ4/D3M
R900511353	4WRZ32W1-520-5X/6A24N9EZ4/D3M
R900521579	4WRZ32W1-520-5X/6A24N9EZ4/D3V
R900537787	4WRZ32W1-520-5X/6A24N9EZ4/M
R978030050	4WRZ32W1-520-5X/6A24N9K4/D3M
R900951109	4WRZ32W1-520-5X/6A24N9K4/D3V
R900927030	4WRZ32W1-520-5X/6A24N9K4/M
R900932691	4WRZ32W1-520-5X/6A24N9K4/MR
R900969434	4WRZ32W1-520-5X/6A24N9K4/V
R900714148	4WRZ32W1-520-5X/6A24N9TK4/D3M
R900548010	4WRZ32W1-520-5X/6A24N9Z4/D3M
R900538653	4WRZ32W1-520-5X/6A24N9Z4/M
R900567756	4WRZ32W1-520-5X/6A24N9Z4/V
R900713639	4WRZ32W1-520-5X/6A24NEK4/D3M
R900925479	4WRZ32W1-520-5X/6A24NEK4/D3MR
R900921511	4WRZ32W1-520-5X/6A24NEK4/M
R900973570	4WRZ32W1-520-5X/6A24NETK4/D3M
R900962192	4WRZ32W1-520-5X/6A24NETK4/D3V
R900954760	4WRZ32W1-520-5X/6A24NETK4/M
R900589648	4WRZ32W1-520-5X/6A24NETZ4/D3M
R900500686	4WRZ32W1-520-5X/6A24NETZ4/D3V
R900589360	4WRZ32W1-520-5X/6A24NETZ4/M
R900504603	4WRZ32W1-520-5X/6A24NETZ4/M-80
R900568280	4WRZ32W1-520-5X/6A24NETZ4/V
R900588848	4WRZ32W1-520-5X/6A24NEZ4/D3M
R900525975	4WRZ32W1-520-5X/6A24NEZ4/D3MR
R900529680	4WRZ32W1-520-5X/6A24NEZ4/D3V
R900594657	4WRZ32W1-520-5X/6A24NEZ4/M
R900560594	4WRZ32W1-520-5X/6A24NJET/D3V
R900617294	4WRZ32W1-520-5X/6A24NJT/D3V
R900953396	4WRZ32W1-520-5X/6A24NK4/D3M
R900923538	4WRZ32W1-520-5X/6A24NK4/M
R900962997	4WRZ32W1-520-5X/6A24NTK4/M
R900565951	4WRZ32W1-520-5X/6A24NTZ4/D3M
R900510594	4WRZ32W1-520-5X/6A24NTZ4/D3M
R900597462	4WRZ32W1-520-5X/6A24NTZ4/M
R900588294	4WRZ32W1-520-5X/6A24NZ4/D3M
R900907237	4WRZ32W1-520-5X/6A24NZ4/D3MR
R900586409	4WRZ32W1-520-5X/6A24NZ4/D3V
R900583517	4WRZ32W1-520-5X/6A24NZ4/M
R900548893	4WRZ32W1-520-5X/6A24NZ4/V
R900534591	4WRZ32W2-250-5X/6A24NZ4/M
R900704994	4WRZ32W2-520-5X/6A24N9EK4/D3M
R978915562	4WRZ32W2-520-5X/6A24N9K4/M
R900977303	4WRZ32W2-520-5X/6A24N9K4/MR
R900551942	4WRZ32W2-520-5X/6A24N9TZ4/D3M
R900598491	4WRZ32W2-520-5X/6A24N9Z4/D3MR
R900528443	4WRZ32W2-520-5X/6A24N9Z4/M
R900936817	4WRZ32W2-520-5X/6A24NEK4/M
R900972845	4WRZ32W2-520-5X/6A24NETK4/D3M
R900592319	4WRZ32W2-520-5X/6A24NEZ4/D3M
R901083031	4WRZ32W2-520-5X/6A24NK4/D3M
R900977977	4WRZ32W2-520-5X/6A24NK4/M
R900514061	4WRZ32W2-520-5X/6A24NZ4/D3M
R900594450	4WRZ32W2-520-5X/6A24NZ4/M
R900522954	4WRZ32W2-520-5X/6A24NZ4/V
R900536359	4WRZ32W2-520-5X/6A24Z4/V
R900742607	4WRZ32W3-360-5X/6A24N9EK4/D3M
R900906361	4WRZ32W3-360-5X/6A24N9EZ4/D3M
R900551882	4WRZ32W3-360-5X/6A24N9EZ4/M
R900935774	4WRZ32W3-360-5X/6A24NEK4/D3M
R901023817	4WRZ32W3-360-5X/6A24NEK4/D3MR
R900972849	4WRZ32W3-360-5X/6A24NETK4/D3M
R900521233	4WRZ32W3-360-5X/6A24NETZ4/D3M
R900533161	4WRZ32W3-360-5X/6A24NEZ4/D3MR
R900562477	4WRZ32W3-360-5X/6A24NZ4/D3M
R978909782	4WRZ32W3-520-5X/6A24N9EK4/D3M
R900572025	4WRZ32W3-520-5X/6A24N9EZ4/D3M
R900524264	4WRZ32W3-520-5X/6A24N9EZ4/D3MR
R978910985	4WRZ32W3-520-5X/6A24N9K4/D3M
R900588341	4WRZ32W3-520-5X/6A24N9Z4/D3M
R900594446	4WRZ32W3-520-5X/6A24N9Z4/D3MR
R900925480	4WRZ32W3-520-5X/6A24NEK4/D3MR
R900967400	4WRZ32W3-520-5X/6A24NEK4/M
R900503594	4WRZ32W3-520-5X/6A24NETZ4/D3M
R900589887	4WRZ32W3-520-5X/6A24NETZ4/D3M-80
R900919002	4WRZ32W3-520-5X/6A24NETZ4/M
R900501079	4WRZ32W3-520-5X/6A24NETZ4/M-125
R900590299	4WRZ32W3-520-5X/6A24NEZ4/D3M
R900523705	4WRZ32W3-520-5X/6A24NEZ4/D3MR
R900594658	4WRZ32W3-520-5X/6A24NEZ4/M
R901064952	4WRZ32W3-520-5X/6A24NK4/D3M
R900973715	4WRZ32W3-520-5X/6A24NK4/M
R900523512	4WRZ32W3-520-5X/6A24NTZ4/D3M
R900520283	4WRZ32W3-520-5X/6A24NTZ4/M
R900591710	4WRZ32W3-520-5X/6A24NZ4/D3M
R900525970	4WRZ32W3-520-5X/6A24NZ4/M
R901155754	4WRZ32W3-520-5X/6A24TK4/D3M
R900508591	4WRZ32W3-520-5X/E/M
R900973695	4WRZ32W360-5X/6A24N9EK4/M
R978915104	4WRZ32W360-5X/6A24N9ETK4/D3V
R900568838	4WRZ32W360-5X/6A24N9ETZ4/D3M
R900553109	4WRZ32W360-5X/6A24N9ETZ4/V
R900945516	4WRZ32W360-5X/6A24N9K4/D3M
R900753996	4WRZ32W360-5X/6A24N9K4/V
R900561238	4WRZ32W360-5X/6A24N9Z4/D3MR
R900550392	4WRZ32W360-5X/6A24N9Z4/V
R900937492	4WRZ32W360-5X/6A24NEK4/D3M
R900966696	4WRZ32W360-5X/6A24NEK4/D3MR
R900956417	4WRZ32W360-5X/6A24NEK4/M
R900968739	4WRZ32W360-5X/6A24NETK4/D3M
R900924642	4WRZ32W360-5X/6A24NETK4/M
R900591470	4WRZ32W360-5X/6A24NETZ4/D3M
R900573382	4WRZ32W360-5X/6A24NETZ4/D3M-80
R900510415	4WRZ32W360-5X/6A24NETZ4/M
R900513222	4WRZ32W360-5X/6A24NEZ4/D3M
R900528331	4WRZ32W360-5X/6A24NEZ4/D3VR
R900505838	4WRZ32W360-5X/6A24NEZ4/M
R900537198	4WRZ32W360-5X/6A24NEZ4/V
R900965397	4WRZ32W360-5X/6A24NK4/D3M
R900936634	4WRZ32W360-5X/6A24NTK4/M
R900588295	4WRZ32W360-5X/6A24NTZ4/M
R900591558	4WRZ32W360-5X/6A24NZ4/D3M
R900506384	4WRZ32W360-5X/6A24NZ4/D3M-80
R900501947	4WRZ32W360-5X/6A24NZ4/M
R900547094	4WRZ32W360-5X/6A24NZ4/M-80
R900520728	4WRZ32W360-5X/6A24NZ4/V
R900591561	4WRZ32W360-5X/6A24Z4/M-211
R978910768	4WRZ32W5-520-5X/6A24EK4/D3M
R900591902	4WRZ32W5-520-5X/6A24ETZ4/D3M
R900535231	4WRZ32W5-520-5X/6A24N9ETZ4/D3M
R900965622	4WRZ32W5-520-5X/6A24NETK4/D3M
R900510796	4WRZ32W5-520-5X/6A24NETZ4/D3M
R900536219	4WRZ32W5-520-5X/6A24NZ4/D3M
R900522574	4WRZ32W520-5X//M
R900563962	4WRZ32W520-5X/6A12EZ4/D3M
R900518644	4WRZ32W520-5X/6A12FH/D3M
R900516742	4WRZ32W520-5X/6A12NJ/D3M
R901083122	4WRZ32W520-5X/6A24EK4/D3M
R900548183	4WRZ32W520-5X/6A24EK4/M
R900973002	4WRZ32W520-5X/6A24ETK4/M
R900746958	4WRZ32W520-5X/6A24EXE/D3V
R900958505	4WRZ32W520-5X/6A24EXET/D3MR
R900502819	4WRZ32W520-5X/6A24EXT/D3M
R900587907	4WRZ32W520-5X/6A24EZ4/D3M
R900587761	4WRZ32W520-5X/6A24EZ4/M
R900961400	4WRZ32W520-5X/6A24N9EK4/D3M
R900935477	4WRZ32W520-5X/6A24N9EK4/V
R900943656	4WRZ32W520-5X/6A24N9ETK4/D3M
R978912030	4WRZ32W520-5X/6A24N9ETK4/D3V
R900754006	4WRZ32W520-5X/6A24N9ETK4/M
R900519745	4WRZ32W520-5X/6A24N9ETZ4/D3M
R900590753	4WRZ32W520-5X/6A24N9ETZ4/M
R900516221	4WRZ32W520-5X/6A24N9EZ4/D3M
R901130370	4WRZ32W520-5X/6A24N9K4/D3M
R900966989	4WRZ32W520-5X/6A24N9K4/M
R900935067	4WRZ32W520-5X/6A24N9K4/V
R978038897	4WRZ32W520-5X/6A24N9TK4/D3V
R900552664	4WRZ32W520-5X/6A24N9Z4/D3M
R900553543	4WRZ32W520-5X/6A24N9Z4/V
R900965495	4WRZ32W520-5X/6A24NEK4/D3M
R900704238	4WRZ32W520-5X/6A24NEK4/D3MR
R900929005	4WRZ32W520-5X/6A24NEK4/D3VR
R900924903	4WRZ32W520-5X/6A24NEK4/M
R900935433	4WRZ32W520-5X/6A24NETK4/D3M
R900948779	4WRZ32W520-5X/6A24NETK4/D3V
R900548112	4WRZ32W520-5X/6A24NETK4/M
R900503464	4WRZ32W520-5X/6A24NETZ4/D3M
R900516913	4WRZ32W520-5X/6A24NETZ4/D3V
R900588342	4WRZ32W520-5X/6A24NETZ4/M
R900592530	4WRZ32W520-5X/6A24NEZ4/D3M
R900589561	4WRZ32W520-5X/6A24NEZ4/M
R900939064	4WRZ32W520-5X/6A24NJ/D3MR
R900919467	4WRZ32W520-5X/6A24NJ/M
R900575317	4WRZ32W520-5X/6A24NJE/D3M
R900942145	4WRZ32W520-5X/6A24NJE/D3MR
R900966825	4WRZ32W520-5X/6A24NK4/D3M
R901099632	4WRZ32W520-5X/6A24NK4/D3VR
R900918344	4WRZ32W520-5X/6A24NK4/M
R900708884	4WRZ32W520-5X/6A24NK4/V
R978912586	4WRZ32W520-5X/6A24NTK4/D3MR
R978915877	4WRZ32W520-5X/6A24NTK4/D3V
R900973705	4WRZ32W520-5X/6A24NTK4/M
R900599489	4WRZ32W520-5X/6A24NTZ4/M
R900597922	4WRZ32W520-5X/6A24NZ4/D3M
R900587123	4WRZ32W520-5X/6A24NZ4/M
R900524033	4WRZ32W520-5X/6A24NZ4/V
R900500335	4WRZ32W520-5X/6A24TZ4/M
R900587543	4WRZ32W520-5X/6A24Z4/D3M
R900588989	4WRZ32W520-5X/6A24Z4/M
R900570574	4WRZ32W520-5X/E/M
R900593577	4WRZ32WA360-5X/6A24NEZ4/D3M
R900596030	4WRZ32WA360-5X/6A24NZ4/D3M

Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Saar HK Electronic Limited
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

Technical data

General

Hydraulic

R900923538

Rexroth Proportional Directional Valve

OBE Rexroth Hydraulic Valves

R900923538 4WRZ32W1-520-55/6AG24NZ4/M 4WRZ32W1-520-5X/6AG24NZ4/M Proportional Directional Valve

You May Like

Pilot Controlled Pressure Relief Valve Type DBW10 DBW20 DBW30

New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock

Pilot Operated Rexroth Hydraulic Valves , 4WRZ16 Proportional Directional Valves

New Rexroth Valve 4WRZE 25 W8-325-71/6EG24N9EK31/A1D3M R900750126

4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve


*From:	Your email address is incorrect!
*To:	Saar HK Electronic Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!
