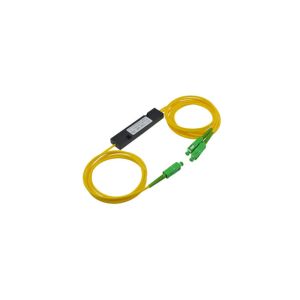

Description
A fiber optic coupler is a device applicated in optical fiber
systems with one or more input fibers and one or several output fibers. For the fused optical splitter, It can be
divided into different ratios. such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one
side and only 20% to the other. As a result of its great function, the Optical splitter is a very important part
of passive optical networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode
(850nm). Cable diameter can be 0.9mm, 2.0mm,3.0mm, Single window, dual window, and three windows all we
can supply. Singlemode Dual Window Couplers are Single Mode Splitters with a defined split ratio from
one or two input fibers to 2 output fibers. Available split counts are 1x2 and 2x2 in split ratios of: 50/50,
40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1. Dual Window Couplers are
available with 0.9mmloose tube single mode fiber or 250umbare fiber and terminated or unterminated as per your
needs. UnconnectorizedDWC's come with no connectors for easy splicing or connectorization.
Connectorized DWC's are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC,
FC/APC, and ST/UPC.
Features
* Low Insertion
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Temperature: -40°C - 85°C
Applications
* Tight and fine structure
* High reliability and directivity
* Non-sensitive wavelength
* Good high-temperature, low-temperature performance
* Convenient engineering applications
* Fine polarization
* Wide scope wavelength
Parameter
| Item | Specification |
| Fiber Type | Single-mode | Multi-mode |
| Splitting Ratio | 50/50 | 40/60 | 30/70 | 20/80 | 10/90 | 5/95 | 1/99 | 50/50 | 40/60 | 30/70 | 20/80 | 10/90 |
| Operating Wavelength(nm) | 1310±40; 1550±40; 1310&1550±40; 1310&1490&1550±20 | 850±40; 1310±40; 850&1310±40 |
| Insertion Loss(dB) | 3.6/3.6 | 4.4/2.8 | 5.6/2.1 | 7.5/1.5 | 10.5/0.9 | 13.5/0.7 | 21.5/0.25 | 4.1/4.1 | 5.2/3.2 | 6.5/2.5 | 8.5/1.8 | 12/1.4 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Thermal Stability(dB) | ≤0.3 | ≤0.5 |
| Directivity(dB) | ≥55 | ≥40 |
| Operating Temperature | -40~85ºC |
Ordering Information:
1. Different split ratios of the optical power can be selected:
50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 4/96, 3/97, 2/98, 1/99...
2. Single window, dual window, three windows.
3. 1310nm, 1490nm, and 1550nm operating wavelengths are all
available
4. 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24
configurations of splitters are available.
5. 250um bare fiber, 0.9 loose tubes, 2. 0mm or 3.0mm LSZH fiber
cables can be selected.
6. The length of input or output fibers can be also customized; 1m
length is the default
