intelligence electric energy saving system
Without changing the original production structure, production
equipment and production technology of enterprises, SEBOS
intelligent power saving system is installed at the low or high
voltage terminal of transformers. Using pure physical
electromagnetic interaction mode, eliminating clutter, absorbing
harmonics and improving power factor in power supply, so that can
balance electromagnetic interaction, reduce magnetic moment
imbalance, improve mechanical efficiency of motor and improve power
quality.
3. Advantage
Design according to actual load and electrical parameters of
transformer
High and low voltage transformer capacity models are all matched,
low voltage (380V/660V1100V), from 315KVA to 3150KVA are matched,
high voltage (6300V/10000V/35000V) models are customized according
to the actual load of the transformer
One-click switching between power-saving state and normal power
supply state without affecting normal production, customer can
switch repeatedly at any time in the case of continuous power
supply, in order to verify the power-saving rate.
Installation of integrated display system, all electrical
parameters are displayed in Chinese and digital, can be viewed at
any time
Implant cloud monitoring system, through mobile phone APP or
computer, timely monitoring of electricity usage
The special winding mode cooperates with the principle of
electromagnetic balance to enhance the balance degree of
three-phase current and voltage, so as to enhance the smooth
operation of electrical equipment, reduce the abnormal heating,
luminescence, noise and vibration of electrical equipment, and then
improve the mechanical efficiency, reduce the demand for electrical
energy from the power grid, so as to achieve the purpose of energy
saving and protection.
4. Technology Princip
Electromagnetic balance technology / Micro magnetic field
technology / Virtual capacitance technology
The core technology of SEBOS Intelligent Power Saving System is a
three-phase electromagnetic balance technology with iron core and
special multi-winding connection mode. Its iron core adopts anti-Z
connection, balances three-phase voltage and current, balances
three-phase power supply and eliminates clutter interference by
overlapping magnetic fields produced by three-phase windings.
Special multi-winding connection mode can compensate magnetic flux
of iron core and control the consistency of induction electromotive
force of each phase to the greatest extent, so as to maintain
three-phase balance, reduce additional losses such as zero-line
current, and achieve the purpose of power saving.
5. Technical Comparison with energy-saving products on the market
| Feature types | Reactance Technology | Reactive power compensation | Frequency conversion technology | Phase control technology | Operation management | SEBOS Intelligent power Saving System |
| Principle | Step-down | Reduce reactive power | PWM control | Phase controlled voltage | Efficiency management | Electromagnetic Balance Technology |
| Capacity | Middle,small | Not limited | Middle,small | Middle,small | Not limited | Not limited |
| Installation mode | Series connection | Parallel connection | Series connection | Series connection | — | Series connection |
| Higher harmonic | Restrain | Restrain | Increase | Increase | — | Reduce |
| Power factor | Reduce | Increase | Increase | Reduce | — | Increase |
| Three-phase Balance | No | No | No | Yes | — | Yes |
| Maintenance | No | Some times | Always | Always | Always | No |
| Using life | 20 years | 8 years | 2-5 years | 3-8 years | — | Over 30 years |
| Application | Lighting device | System and Single device | Single device | Single device | System | System |
| Structure condition | Simple | Complex | Simple | Simple | — | Simple |
| Electricity saving rate | little | no | High | little | no | High |
| Energy saving | less | no | less | less | high | High |
| Disadvantage | Mainly used for lighting | Only reduced the loss of the power supply | Large maintenance and high harmonic generation | Same as frequency conversion technology | It is difficult to establish control model | On-site testing before customization |
6. Personalized customized
Single-phase: 110V, 220V 50A Medium and low pressure: 30KVA-2500KVA
Three-phase: 380V,6KV,10KV,35KV 5000A High pressure:
3150KVA-5000KVA
| Capacity (KVA) | SIZE: L (mm) | SIZE: W (mm) | SIZE: H (mm) | Weight |
| 315 | 1000 | 1100 | 2000 | 550 |
| 400 | 1000 | 1100 | 2000 | 650 |
| 500 | 1000 | 1100 | 2000 | 750 |
| 630 | 1000 | 1100 | 2000 | 900 |
| 800 | 1000 | 1100 | 2000 | 1000 |
| 1000 | 1000 | 1100 | 2000 | 1100 |
| 1250 | 1000 | 1100 | 2000 | 1250 |
| 1600 | 1000 | 1300 | 2000 | 1450 |
| 2000 | 1100 | 1300 | 2000 | 1650 |
| 2500 | 1100 | 1300 | 2000 | 1850 |
| 3150 | 1300 | 1300 | 2000 | 2000 |
7. Equipment inspection
1) Passed the qualification inspection of CNAS
2) According to CQC3103-2009
8. Equipment safety and energy saving
SEBOS intelligent power-saving system will not be cut off due to
switch tripping
When the intelligent power saving system fails, the main circuit
will automatically switch to the municipal power supply.
The load is not affected during power saving and normal electric
supply conversion and the modular design of power-saving part is
convenient for upgrading
Intelligent power saving system is installed at the secondary
outlet side of transformer, which conforms to the electricity
regulations.
SEBOS intelligent power saving system is sent to the National Smart
Grid Transmission and Distribution Equipment Quality Supervision
and Inspection Center and China Quality Certification Center for
inspection and certification, and has obtained CMA, CE and CQC
reports.
9. Reconstruction effect

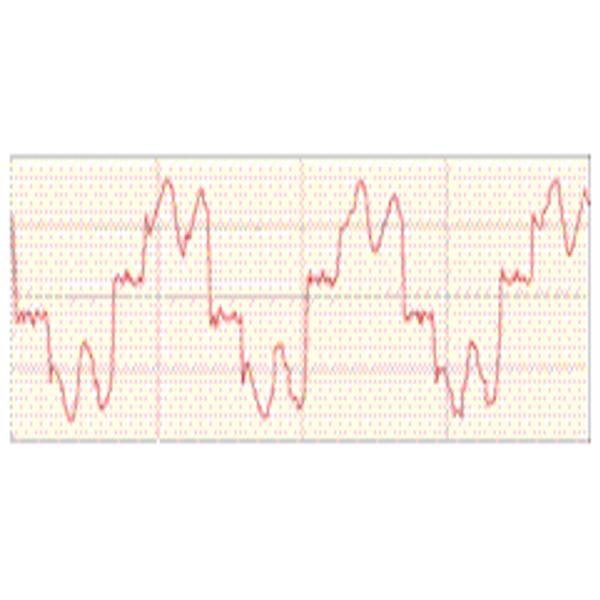

Before reconstruction
After Reconstruction
9. Successful cases
Cement plant
