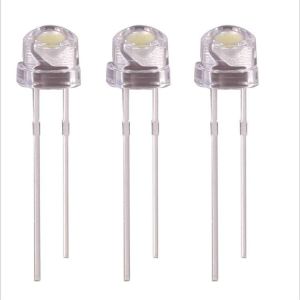

LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED

    Buy cheap LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED from wholesalers

    Buy cheap LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED from wholesalers
    • Buy cheap LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED from wholesalers

    LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED

    Ask Lasest Price
    Brand Name : QUEENDM
    Certification : SGS ROHS CE
    Price : 0.015
    Payment Terms : T/T
    Supply Ability : 10KK+PCS
    Delivery Time : 7-15
    • Product Details
    • Company Profile

    LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED

    product name产品名称Part No.Emitted ColorPowerλd (nm)/CCT(K)发光强度顺向电压

    反向电流

    Viewing Angle 2Ө 1/2Lens Type
    Iv(lm)ranks @IF=150mAVF(V)IF(µA)
    Ø5白发红J5R302CRed0.06W62063030012001.82.2≤10120±5°Clear
    Ø5白发橙J5O302COrange0.06W60061030012001.82.2≤10120±5°Clear
    Ø5白发黄J5Y302CYellow0.06W58559530012001.82.2≤10120±5°Clear
    Ø5白发绿J5G302CGreen0.06W51053090016003.23.6≤10120±5°Clear
    Ø5白发蓝J5B302CBlue0.06W46047040012003.23.6≤10120±5°Clear
    Ø5白发白J5W302CWarm White0.06W12002300110025003.23.6≤10120±5°Clear
    Ø5白发白J5W302CPositive white0.06W13002500120023003.23.6≤10120±5°Clear

    Ø5白发白


    J5W302CCool white0.06W12002300120023003.23.6≤10120±5°Clear

    Features:

    Adopt Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product consistency, low light decay, high brightness

    Colloid color: white mist (can be customized as required: colored mist, colorless mist, colored transparent, colorless and transparent)

    Luminous color: white (can be customized according to requirements: white, red, orange, yellow, ordinary green, emerald green, blue, two-color)

    Light angle: 120±5° (angle can be adjusted according to customer requirements)

    Product foot length: long feet (26.5mm) or short feet (16.5mm) can be bent and cut according to requirements

    Lead-free standard: in line with EU ROHS standard SGS certificate

    Packing: Anti-static bag packaging 1000pcs / bag

    5mm in-line lamp beads | The full range of specifications are 5MM round head lamp beads, 5MM flat head lamp beads, 5MM straw hat lamp beads. .

    For more specifications, please contact online customer service. and more production of various types of plug-in leds. The luminous colors are red,

    yellow, blue, green, white, Purple, pink, full range of wavelengths from 380-780NM; models such as F3/3MM, F5/5MM, F8/8MM, F10/10MM and other specifications, please contact online customer service.


    LINE ID :2020131419 WeChat: SUNBOY1913 KYPE:164634777@qq.com http://www.cn-led.net/en/ E-mail:ib@cn-led.net

    Guangdong Queendom Technology Co., Ltd.©2019 copyright
