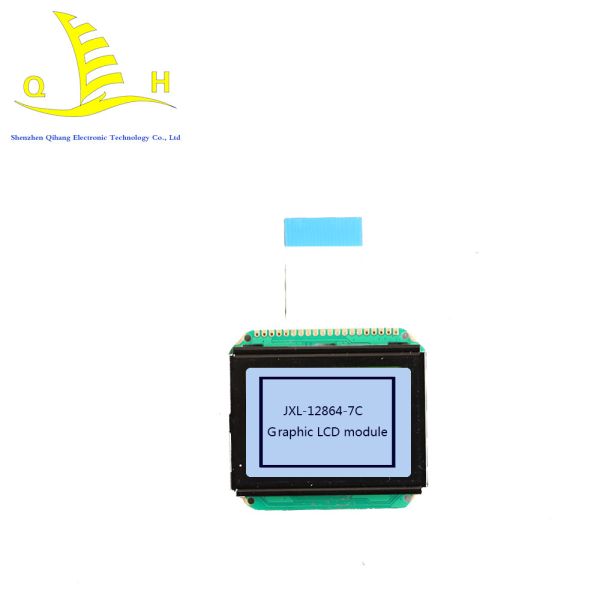

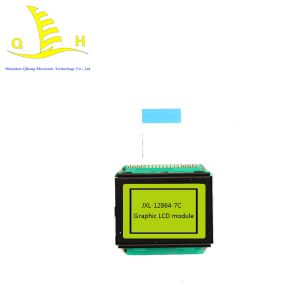

| Name | Customize 12864 Dot LCM Alphanumeric LCD Display Module |
| Place of Origin: | Shenzhen, Guangdong, China |
| Display Content | 128*64 DOTS |
| Operating Voltage | 5V |
| Driving Method | According to your request |
| Viewing Angle | 6 o'clock |
| Display | Positive |
| Polarizer | Transflective |
| View Area | 43.5(H)*29.0(V)(mm) |
| Outside Dimensions | 54.0(H)*50.0(V)*9.9(D)(mm) |
| Voltage Driving | Dynamic or static |
| Connector | 20 Pin or according to your request |
| Operating Temperature | -20℃-55℃ |
| Storage Temperature | -30℃-70℃ |
| Package | COB |
| Drive Method | 1/64Duty, 1/9 Bias, VOP 9.0V |
| System Design | Lcd module related system software and hardware design accepted |
| Warranty | 12 Month free, payed warranty lifttime |
| Backlight | Yellow - Green LED back light |
| LCD Module Type | Meter Module |
| Sample Lead Time | 3-7 working days |
| Customize Lead Time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small
carton in big carton |
| Cetification | ISO,SGS |
FAQ
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .You should
pay the sample fee and freight. Sample lead time always be within
2-5 days.
Q2. How to order lcd?
A:Please send us your purchase order by Email, or ask us to send
you one invoice. We need to know the following information for your
order.
1) Product information-Quantity, part number
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone & Fax
number, Destination sea port.
4) Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A:The samples will be ready for delivery in 1~7days.The samples
will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part
number you want, then we can send you the datasheet immediately.
Shipping Warranty
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and
HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please
contact us for checking the package status timely online or by
email.
Technical Service
If you have technical problem with the product you received from
us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote
help by our engineer, please download the teamviewer software,
install it on your computer, then give us ID and password for
remote help.
Product Application
The product is monochrome dots matrix lcd display,which widely used
in industrial meter,medical device,financial device and household.
