Automatic rotary type powder filling machine
The mechanical structure is simple, the precision is high, the
operation is reliable, and the service life is long. It is widely
used in food, pharmaceutical, chemical industry and scientific
research field. The machine can not only be produced by single
machine, but also can be combined with bottle washing machine and
dryer. It is in line with national GMP requirements.
Main Features
1, Man-machine interface setting, operation intuitionistic and
convenient, PLC control, accurate loading.
2, Frequency conversion control, the production speed is
arbitrarily adjusted, automatic counting.
3. Automatic stop function, no bottle no filling.
4, The disc positioning type filling is stable and reliable.
5, Made of SUS304 stainless steel, fully meet the requirements of
GMP.
Feature:
Choices for multiple sealing types of international standard.Safety
protection by multiple layers to keep products from penetration.
Visible during the packing, easy to learn the operation, convenient
and quick to adjust package size.
The main characteristics of equipment
It is suitable for filling packing different liquid, paste and
cream products such as water, oil, milk, juice, ketchup, tomato
sauce, peanut butter, honey, mayonnaise, liquid detergent, shampoo,
body washing, and other non-free-flowing liquid when equipped with
different filling machines like Piston Pump Filling, Peristaltic
Pump Filling, Haibar Pump Filling. With the suitable filling
solution to meet the filling accuracy and packing speed
requirements and avoid the liquid material bubble, forming,

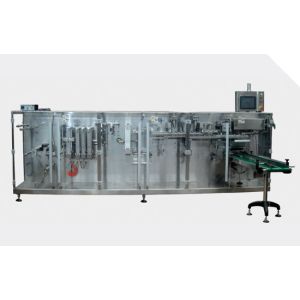

dripping, and splashing. The horizontal pouch packaging machine is
a fully-automatic packing machine, which is widely used for food/
beverage/ cosmetics/ chemicals/ pharmaceuticals packaging. The
packing material can be regular laminated film such as PE / AL /
PET PE / NY / AL / PET; CPP / NY / AL / PET.
Technical Parameter:
- Pouch Width 110mm-200mm
- Pouch Length 110mm-320mm
- Max Volume 700ml
- Speed 30-60 pouch/min.
- Pacing Accuracy <±1.5%
- Reel 500mm
- Electricity Consumption 7.5KW
- Air Consumption 0.6m3/min
- Weight 2200KG
- Size (L×W×H) 5500mm×960mm×1370mm
