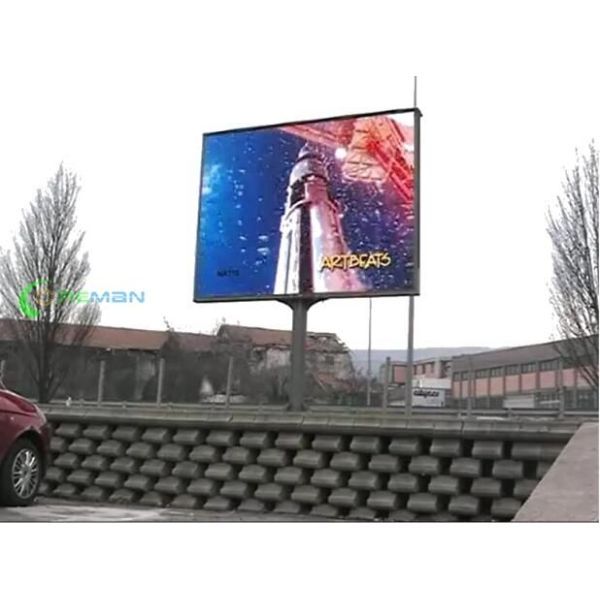

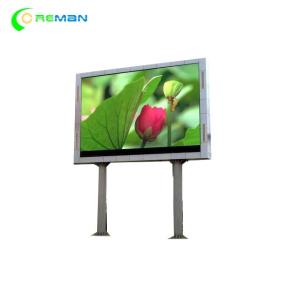

Outdoor Video Led Wall Fixed Installation P5 Full Color Led Display
Screen
P5 outdoor video led wall features:
Mainly for outdoor advertising, information publishing, journalism
and communication in some places, such as cultural square, traffic
arteries, stations, terminals, information centers, entertainment
venues, shopping, centers, commercial city and etc.
1. High brightness SMD3535 LED is used for outdoor LED display,
keeps the display content visible even if facing the strong
sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change
even if under exposure of UV ray.
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid
audio visual effect.
6. Rear access are available.
7. The LED Chips that we use have the advantages of large viewing
angle, low power consumption and good color uniformity.
8. Use the same level of red, green and blue LED chips, which makes
the image display of whole LED display more excellent and uniform.
9. The maintenance of pixel and single LED has been realized.
10. Good quality raw material, accurate technique and careful
inspection insures the high quality of LED display.
11. Relatively low cost (factory)
12. Stable capability
13. High brightness, high definition of displaying image.
14. Easy installment and low maintenance cost
15. Cabinet size double fan design, speed up internal air
circulation, auxiliary heat make the screen more stable and
reliable.
P5 led display cabinet specification:
| NO. | Item | Parameters |
| 1 | Pixel Pitch(mm) | 5 |
| 2 | LED Configuration | 1R1G1B |
| 3 | LED Type | SMD2525 |
| 4 | Screen Resolution | 40000dots/sqm |
| 5 | Module size(mm) | 320x160 |
| 6 | Module resolution(dots) | 64x32 |
| 7 | Scan method | 1/8 constant current drive |
| 8 | Cabinet size(mm) | Customed |
| 9 | Cabinet resolution(dots) | / |
| 10 | Cabinet material | Iron / Aluminum |
| 11 | Brightness(cd/sqm) | ≥6000 |
| 12 | Viewing angle | H:140°/ V:140° |
| 13 | Grey Scale | 14bit |
| 14 | Refresh rate(Hz) | ≥1920 |
| 15 | Ave. power consumption (W/sqm) | 250 |
| 16 | Max. power consumption(W/sqm) | 750 |
| 17 | IP grade | F:IP65 / R:IP54 |
| 18 | controller | Novastar / Linsn |
| 19 | Maintenance | Rear service |
| 20 | Color(T) | >281 |
| 21 | Input Voltage(V) | AC 110V-220V +/-10% |
| 22 | Frame frequency(Hz) | 60 |
| 23 | Working humidity | 10~95%RH |
| 24 | Working temperature | -30ºC~60ºC |
| 25 | Certificates | RoHS / CE / CCC |
1. Are you trading company or manufacturer?FAQ:
We are a professional led screen manufacturer located in Shenzhen
since 2009.
2. How to payment?
We accept the L/C, T/T, Paypal.
3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 15-25 working days after you placed the order,
but the specific delivered time will be affected by the shipping
company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the
sample cost and the courier cost.
6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and
sea shipping also optional.
