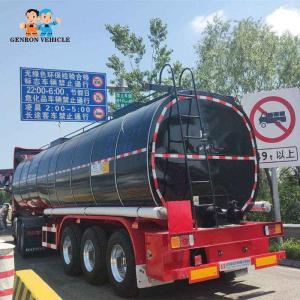

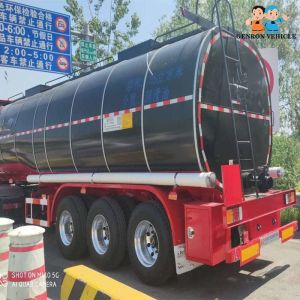

Product introduction of Mechanical Suspension 3 Axles 40T Asphalt Tanker Trailer
| Main Dimensions |
| Tank Body |
| Shape | Optional ( Round or Square) |
| Dimension | 12000mm*2490mm*3990mm |
| Tare weight | About 8000KGS-12800KGS |
| Total Volume(m3) | 60 m³ |
| Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
| End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
| Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Axle | 3 axles, FUWAbrand |
| Landing Gear | JOST (D200T)or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
| Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Feature of Mechanical Suspension 3 Axles 40T Asphalt Tanker Trailer
3 axle Asphalt Tanker Trailer semi trailer adopt advanced design concept. We also can produce the
tanker trailers for different liquid like fuel, petrol, water, palm
oil etc.
To make sure the safety, our standard trailers adopt the Bottom
Emergency valves. This can help the tankers to prevent oil leakage,
when emergency happens.
Tanker trailers Major parts and components of the trailer are
processed by advanced equipment. Also we adopt world famous brand
of parts, like JOST, WABCO braking valve etc
Advantage of Mechanical Suspension 3 Axles 40T Asphalt Tanker
Trailer
1Main frame is made of high strength low alloy steel, which can
fully enhance its abilities of resistance to torsion, anti-seismic
and anti-jolt, and meet the various loading requirements.
2The tanker can be produce with 1 compartments to 7 compartments
according to customer demand
3Axles: The axle can be selected in different famous brand of BPW
and FUWA. Domestic and overseas. Also, the ABS system can be
optional with Haldex and WABCO etc., can be greatly increase the
stability and safety.
4Suspension system: Mechanical suspension and air suspension series
optional.
5Single tire or double tire is optional
Detail of Mechanical Suspension 3 Axles 40T Asphalt Tanker Trailer
Our company
Factory show
Our service
Before sale
A: Quotation:
We will gave you the matched product details configuration and
drawing according to your market, show you the best-selling model
pictures and reasonable best price.
B. Reception & Accompany: After you accepted the offer price we
have made to your company have the pre-interview ,you can come to
visit our office and then go to visit factory ,we will arrange your
everything in China. Or if you not sure which model of trailer or
other product you should chose ,we can arrange our professional
technical checking your market together with you.
After sale
We have our own technical team, we will gave you repaired method
within 12 hours through calling or email. We can go to visit you
gave you technical guide after or before you buy 'Genron' products.
We will post to you all spare parts for free within guarantee
period after the spare parts were out of work which are under
normal operation.
