    API 16A 11" 10000psi Casing/Tubing Head Casing/Tubing Spool Casing Housing And Spare Parts

    Ask Lasest Price
    Brand Name :
    Model Number : 7"- 20"
    Certification : API 6A
    Price : USD200-5000/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    API 16A 11" 10000psi Casing/Tubing Head Casing/Tubing Spool Casing Housing And Spare Parts

    API 16A 11" 10000psi Casing/Tubing Head Casing/Tubing Spool Casing Housing And Spare Parts


    API 16A 11" 10000psi Casing/Tubing Head Casing/Tubing Spool Casing Housing And Spare Parts

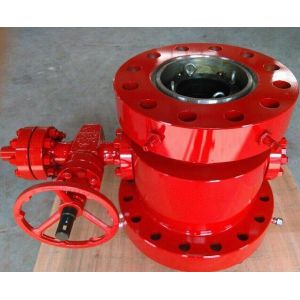

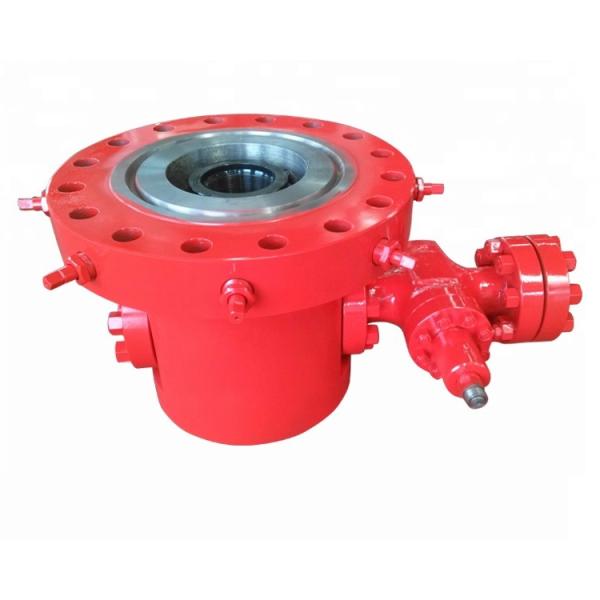

    The casing head, a component connecting the casing to the wellhead assembly of various types and sizes, is used to support the both the intermediate (protective) string and the production string ,and to seal up the annular space between the casings,thus providing a crossover connection for the installation of the bop ,the tubing head,the Christmas tree and other top wellhead components. It is also used to inject additional cement slurry or balance fluid,monitor the well sink,and execute other operating through both of the two bypass holes in the casing head body.


    Connection Forms between Casing Head and Surface Casing
    *Threaded bottom type
    *Welded bottom type
    *Slip bottom type


    Product NameCasing head
    Working Pressure2000 ~20000psi
    Nominal Bore7" ~20"
    Working Mediumoil,natural gas,mud and gas containing H2S,CO2
    Working Temperature-46°C~121°C(Class LU)
    Material ClassAA,BB,CC,DD,EE,FF,HH
    Specification levelPSL1-4

    Top flangeSurface casingIntermediate casingProduction casing
    11"-35MPa13 3/8"9 5/8"7"
    5 1/2"
    11"-70MPa13 3/8"9 5/8"7"
    5 1/2"
    11"-105MPa20"13 3/8"9 5/8"7"
    5 1/2"
    13 5/8"-35MPa13 3/8"9 5/8"7"
    5 1/2"
    13 5/8"-70MPa13 3/8"9 5/8"7"
    9 5/8"
    13 5/8"-105MPa20"13 3/8"7"
    5 1/2"
