AWP EWPs 9m 29ft 450kg Capacity Elevated Lift Platform

Name: AWP EWPs 9m 29ft 450kg Capacity Elevated Lift Platform
Brand: JESH
Price: 1 USD

Add to Cart

AWP EWPs hydraulic 9m 29ft 450kg capacity elevated work platform scissor lift for renting

elevated work platform scissor lift specifications data :

Model	SS0912HL
Dimentions	Metric
Working Height	10.7m
Platform Height	8.7m
Platform Length	2.36m
Platform Length-Extended	3.26m
Platform Extension	0.9m
Platform Width	1.1m
Height -Unfolded	2.36m
Height-folded	1.83m
Wheelbase	1.93m
Min. Ground Clearance-stowed	10cm
Min. Ground Clearance-Raised	2cm
Productivity
Platform capacity	450kg
Extension platform capacity	120kg
Drive Speed	3.5km/h
Gradeability	25%
Raise/Lower Speed	55/42sec
Turning Radius(Inside/outside)	0/2.17m
Tire	40.5x12.7cm
Power	Hydraulic electric
Engine	Bettery 24V/225Ah
Hydraulic Oil Tank Capacity	15L
Machine Total Weight	2730kg
Engine	optional(perkins, Kohler,Deutz,Commins,Yanmar)

Chassis:

Unique design of bidirectional retracting scissor arm.

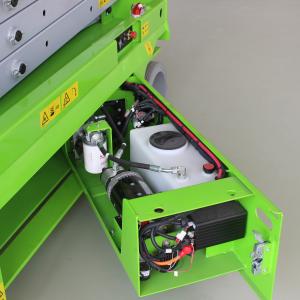

Slide out tray on left and right,easy for maintenance.
Forklift hole on side for loading and discharging.
Unique pothole protection design.
Orbital plane,easy for cleaning.
Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Performance:

AWP EWPs hydraulic 9m 29ft 450kg capacity elevated work platform scissor lift for renting

Factory Picture:
