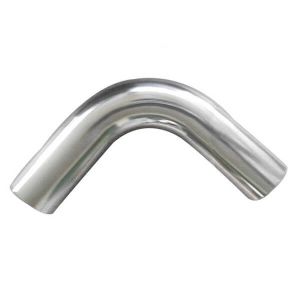

ASME Sanitary Elbow

Safety Sanitary Butt Weld Fittings 45 90 180 Degree Pipe Elbow Fittings ASME BPE Standard

Product Description:

ASME BPE sanitary butt weld elbows fittings are designed specifically for use in pharmaceutical applications to connect stainless steel pipes which need to turn directions, so mateiral is always 316 stainless steel. These fittings need extended tangents to accommodate the orbital weld heads used heavily in the autogenously welding procedures used in the joining of pharmaceutical fittings. BPE elbow fittings dimension are outlined in the Bioprocess Equipment standard.

The butt weld elbows are machined by high class CNC machine, and the surface can meet high hygienic requirement.

The surface finish of our BPE butt weld elbow 20 Ra Mechanical ID polish and 32 Ra polished OD. After the PL and PC finishes, we get into the additional electropolish finishes- PL and PM.

Applications:

• All companies in need of hygiene and high purity
• End-users in pharmaceutical, food, biotechnology, dairy
• OEMs
• Piping and Installations Companies
• Engineering Contractors
• Maintenance, Repair and Overhaul Companies
• "Hygienic Equipment" means all equipment,
• Components, assemblies and systems

Technical Details:

• Name: Sanitary Butt Weld Elbows / Bends
• Material: 316L stainless steel
• Size: 1/4" - 6"
• Standards: ASME BPE
• Main types: 45 degrees elbow, 90 degrees elbow, 180 degrees elbow
• Working pressure: 10 bar
• Working temperature: -10 °C ~ +140 °C
• Surface treatment: pharmaceutical grade Ra<0.4μm
