PM50-TR MS2 Distributed Desktop controller for Remote Computer
Control and decode ip camera, ONVIF & H265/264 compatible, no limit on quantity of encoder or
decoder, can work with ip matrix, Video over IP
In general
PM50-TR MS2 distributed desktop controller for Remote Computer
Control and ip camera decoding, is compatible with ONVIF, H265/264,
furnished with our All-in-one software to operate Multiple remote
Computers and network cameras on computer's desktop, ptz operation,
video curise, call Plan, etc.all video and control is over ip.
it contains Encoders and Decoders, can work accross subnet.

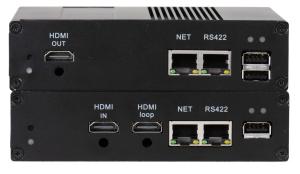

the Encoder installed to Remote computer side, HDMI out from remote
computer and HDMI loop to these computers' original monitors, isno
any software or plug-in installed on the remote computer.
at Decoder side, no computer is requested, HDMI output to monitor
and USB port for Mouse and keyboard.
All in one software is embeded in the Decoder, one key to call All
in one software to display on monitor.
PM50-TR MS2 Remote Computer Controller is a system, which could
control many remote computers or ip cameras, no limit on quantity,
every encoder or decoder is furnished its ip address.
Features
it configures Decoder by the All in one software over IP.
All in one software could add remote computer or ip camera over
subnet.
the Decoder does not need any computer, it could decode Video of
encoder or ip cameras, operate cameras' PTZ by mouse on interface.
Transmission support 4K@ 30hz.
No limit on quantity of encoder and decoder, one or multiple
decoder could communicate with one or multiple decoders.
Support standard HDMI signal input and HDMI video loop to ensure
orginal video.
Support standard HDMI output, maximum 4K output. no video loss.
Transmission supports cross subnet, different locations can work
together.
Video and control could be in same network.
Support Video super low delay.
Can work with IP matrix by the All in one software without any api
or protocol integration.
All in one software could steer decoder to operate Video Zoom+ or -
by different resolution.
Video and Code stream could adjust.
USB mouse/keyboard support plug and play.
PM50-S server All in One software
Specifications
| Encoder |
| Video | 1ch HDMI 1.4b input, 1ch HDMI loop out |
| Audio | Optional, 1ch 3.5mm audio input, 1ch 3.5mm output |
| Encoding | H264, RTSP stream |
| Network | 1ch RJ45, 10/100/1000Mbps self-adaptive |
| USB | 1ch Mini USB |
| RS485/422 | 1ch RS422 Full duplex, compatible with RS485 port, RJ45 |
| Resolution | Maximum 4K@30Hz input |
| Remote firmware update | Support |
| Power | DC12V,DC12V/2A adaptor included |
| Power consumption | ≤12W |
| Dimension | L:215.5mm * H:44.0mm *D:284.0mm ( without ear or other chassis) |
| Installation | Stand-alone or chassis available to choose |
| Working temperature | 0℃～55℃ |
| Humidity | 10%～90% |
| Decoder |
| Video | 1ch HDMI 2.0 output |
| Audio | Optional, 1ch 3.5mm audio input, 1ch 3.5mm output |
| Decoding | H264, H265, Onvif compatible |
| Network | 1ch RJ45,10/100/1000Mbps self-adaptive |
| USB | 2ch USB-A port for Mouse and keyboard |
| RS485/422 | 1ch RS422 Full duplex, compatible with RS485 port, RJ45 |
| Resolution | Maximum 4K@30Hz input |
| Remote firmware update | Support |
| Power | DC12V,DC12V/2A adaptor included |
| Power consumption | ≤12W |
| Dimension | L:215.5mm * H:44.0mm *D:284.0mm ( without ear or other chassis) |
| Ear for chassis mount | Ear is optional for 19” rack chassis |
| Installation | Stand-alone or chassis available to choose |
| Working temperature | 0℃～55℃ |
| Humidity | 10%～90% |
Applicaitons:
It is good choice for some applications whch request computer
remote control (desktop).
