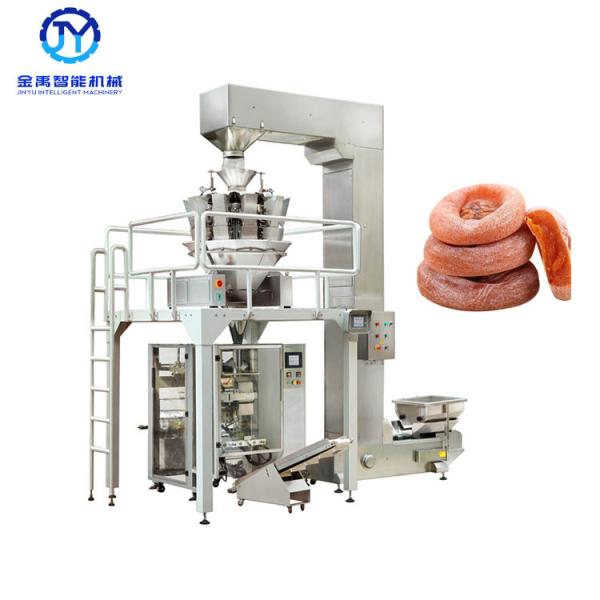

Dried Persimmon Granular Packing Machine With Weighing
FREE for service we offer:
1. Offer sample packing service
2. Offer related product packing video
3. Offer customized professional packing solution
4. Offer service for irregular visits and equipment maintenance
5. Offer pre-sales and after-sales service
6. Offer one-year warranty, lifetime service
7. Offer and help service of booking roll film
8. Offer installment video, teaching video and maintain video
Feature
- PLC control with stable, reliable biaxial high accuracy output and
color touch screen, bag-making, measuring, filling, printing,
cutting , finished packing in one operation.
- Circuit boxes for pneumatic control and power control are separate.
Low noise and the circuit is more stable.
- Using film-pulling with vacuum double belt: less pulling
resistance, bag is formed in good shape with better appearance,
belt is resistant to be worn-out.
- Double servo control, high precision orientation, size more nicety.
- External film releasing mechanism: simpler and easier installation
of packing film.
- Adjustment of bag deviation just needed to be control the touch
screen. Operation is very simple .
- Close down type mechanism , defending powder into inside of
machine.
Application score
It’s suitable for using in packing the high accuracy and easy
fragile materials and granular ,such as: puffy food. crispy rice,
jelly, candy, pistachio, apple slices, dumpling, chocolate , pet
food, small hardware, Medicine, peanuts ,nuts , cashew nuts,
roasted products etc.
Specification:
| Machine model | JY-420 | JY-520 |
| Bag length | 80-320mm(L) | 80-420mm(L) |
| Bag width | 50-200mm(W) | 50-250mm(W) |
| Max width of roll film | 420mm | 520mm |
| packing material | OPP/CPP,OPP/PE,PET/PE |
| Packing speed | 5-60bags/min | 5-50bags/min |
| Measuring range | 150-1500ml | 150-2000ml |
| Power voltage | 220V 50/60hz 2.2kw | 220V 50/60hz 2.5kw |
| Machine weight | 500kg | 550kg |
| Machine dimension | (L)1388×(W)1116×(H)1536mm | (L)1440×(W)1216×(H)1796mm |

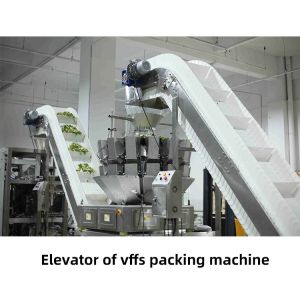

Machine details of Dried Persimmon Granular Packing Machine With
Weighing
Sample photos of Dried Persimmon Granular Packing Machine With
Weighing
Delivery of Dried Persimmon Granular Packing Machine With Weighing
Our advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide one year complete warrantee and lifetime maintenance
service.
