    3B12-306 Goodyear Air Spring Triple Convolution FT 330-29 CI 1/4 NPT

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 3B12-306
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    3B12-306 Goodyear Air Spring Triple Convolution FT 330-29 CI 1/4 NPT

    Goodyear Air Springs 3B12-306 Genuine Triple Convolution Cross to Contitech FT 330-29 CI 1/4 NPT

    3B12-306 Cross others OEM

    Goodyear 3B12-306

    Goodyear 3B12 306

    Goodyear 3B12306

    Goodyear Flexmember 578-93-3-100

    Goodyear Flexmember 578 93 3 100

    Goodyear Flexmember 578933100

    Contitech FT 330-29 503 CI 1/4 NPT

    Contitech FT 330 29 503

    Contitech FT330-29 503

    Firestone: 8006;

    Firestone:W01-358-8006

    Firestone:W01 358 8006

    Firestone:W013588006
    Firestone: 8013;

    Firestone:W01-358-8013

    Firestone:W01 358 8013

    Firestone:W013588013

    Triangle spring: 4430
    Triangle spring: 4503

    Kangdi Technology: 64568
    Suspension company: 200620
    batco: 10-98006
    UCF / Impex: AB-3B12-304
    T.W. Distribution: AB8006
    Dallas Spring: AS8006
    Midland / Haldex: CS312304
    Euclid / Meritor Aftermarket: E-FS8006
    Euclid / Meritor Aftermarket: FS8006
    Kangdi Technology: FT330-29503
    Leland: SC2132

    3B12-306 Goodyear Technical parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm

    Cover Plate

    Top Cover Plate Diameter: 228.6 mm

    Bottom Cover Plate Diameter: 228.6 mm

    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 120 mm to MAX 457 mm

    Maximum Height : 457 mm

    Minimum Height :120 mm

    Stroke Height : 179mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop

    Other kinds of goodyear :

    57893230000000 20094938 Y 3B12-300 3B12-300
    3B12-300 20035817 N 3B12-300 Bellows Air Spring 3B12-300 Bellows Air Spring
    57893230100000 20094943 Y 3B12-301 3B12-301
    3B12-301 20094947 N 3B12-301 Bellows Air Spring 3B12-301 Bellows Air Spring
    57893230300000 20094948 Y 3B12-303 3B12-303
    3B12-303 20035819 N 3B12-303 Bellows Air Spring 3B12-303 Bellows Air Spring
    57893230400000 20054271 Y 3B12-304 3B12-304
    3B12-304 20035820 N 3B12-304 Bellows Air Spring 3B12-304 Bellows Air Spring
    57893230400019 20094956 Y ENIDINE YI-3B12-304 ENIDINE YI-3B12-304
    57893230500000 20094959 Y 3B12-305 3B12-305
    3B12-305 20094960 N 3B12-305 Bellows Air Spring 3B12-305 Bellows Air Spring
    57893230500019 20094961 Y ENIDINE YI-3B12-305 ENIDINE YI-3B12-305
    57893230800000 20094966 Y 3B12-308 3B12-308
    3B12-308 20099073 N 3B12-308 3B12-308
    57893230800019 20094967 Y ENIDINE YI-3B12-308 ENIDINE YI-3B12-308
    57893230900000 20054272 Y 3B12-309 3B12-309
    57893231000000 20105514 Y 3B12-310 3B12-310
    3B12-310 20110947 N 3B12-310 Bellows Air Spring 3B12-310 Bellows Air Spring
    57893231100000 20094969 Y 3B12-311 3B12-311
    57893231200000 20035821 Y 3B12-312 3B12-312
    3B12-312 20094970 N 3B12-312 Bellows Air Spring 3B12-312 Bellows Air Spring
    57893231300000 20099695 Y 3B12-313 3B12-313
    3B12-313 20307217 N 3B12-313 3B12-313
    57893231300019 20094974 Y ENIDINE YI-3B12-313 ENIDINE YI-3B12-313
    57893231400000 20094975 Y 3B12-314 3B12-314
    57893231500000 20099677 Y 3B12-315 3B12-315
    3B12-315 20127021 N 3B12-315 Bellows Air Spring 3B12-315 Bellows Air Spring
    57893231600000 20094977 Y 3B12-316 KIT 3B12-316 KIT
    3B12-316 20136005 N 3B12-316 KIT 3B12-316 KIT
    57893231700000 20094978 Y 3B12-317 3B12-317
    57893231900000 20109195 Y 3B12-319 3B12-319
    3B12-319 20109214 N 3B12-319 Bellows Air Spring 3B12-319 Bellows Air Spring
    57893232000019 20106776 Y ENIDINE YI-3B12-320 ENIDINE YI-3B12-320
    57893232100000 20112849 Y 3B12-321 3B12-321
    57893232100019 20112990 Y ENIDINE YI-3B12-321 ENIDINE YI-3B12-321
    57893232200000 20118920 Y 3B12-322 3B12-322
    3B12-322 20118921 N 3B12-322 Bellows Air Spring 3B12-322 Bellows Air Spring
    57893232300000 20118922 Y 3B12-323 3B12-323
    3B12-323 20118923 N 3B12-323 Bellows Air Spring 3B12-323 Bellows Air Spring
    57893232400000 20113782 Y 3B12-324 3B12-324
    3B12-324 20137951 N 3B12-324 Bellows Air Spring 3B12-324 Bellows Air Spring
    57893232500000 20118924 Y 3B12-325 3B12-325
    3B12-325 20118925 N 3B12-325 Bellows Air Spring 3B12-325 Bellows Air Spring
    57893232500018 20118926 Y ENIDINE YI-3B12-325 ENIDINE YI-3B12-325
    57893232500019 20118927 Y ENIDINE YI-3B12-325 ENIDINE YI-3B12-325
    57893232600000 20118928 Y 3B12-326 3B12-326
    3B12-326 20118929 N 3B12-326 Bellows Air Spring 3B12-326 Bellows Air Spring
    57893232600018 20118931 Y ENIDINE YI-3B12-326 ENIDINE YI-3B12-326
    57893232600019 20118930 Y ENIDINE YI-3B12-326 ENIDINE YI-3B12-326
    57893232700000 20132717 Y 3B12-327 3B12-327
    3B12-327 20132718 N 3B12-327 3B12-327
    57893232800000 20132490 Y 3B12-328 3B12-328
    3B12-328 20132491 N 3B12-328 Bellows Air Spring 3B12-328 Bellows Air Spring
    57893232800077 20215646 Y 3B12-328 WATSON & CHALIN AS0019 3B12-328 WATSON & CHALIN AS0019
    57893232900000 20132492 Y 3B12-329 3B12-329
    3B12-329 20132493 N 3B12-329 Bellows Air Spring 3B12-329 Bellows Air Spring
    57893232900077 20215647 Y 3B12-329 WATSON & CHALIN AS0048-2G 3B12-329 WATSON & CHALIN AS0048-2G
    57893233000000 20130960 Y 3B12-330 3B12-330
    57893233000004 20130961 Y 3B12-330 3B12-330
    57893233400000 20156850 Y 3B12-334 3B12-334
    3B12-334 20156851 N 3B12-334 3B12-334
    57893233400055 20551236 Y 3B12-334 FOR MDC 3B12-334 FOR MDC
    57893233500000 20141253 Y 3B12-335 3B12-335
    3B12-335 20141254 N 3B12-335 Bellows Air Spring 3B12-335 Bellows Air Spring
    57893233600000 20141257 Y 3B12-336 HENDRICKSON HEBRON 004645 3B12-336 HENDRICKSON HEBRON 004645
    57893233600004 20141258 Y 3B12-336 HENDRICKSON HEBRON 004645 3B12-336 HENDRICKSON HEBRON 004645
    57893233700000 20156098 Y 3B12-337 3B12-337
    3B12-337 20156099 N 3B12-337 Bellows Air Spring 3B12-337 Bellows Air Spring
    57893233800000 20156259 Y 3B12-338 3B12-338
    3B12-338 20156300 N 3B12-338 Bellows Air Spring 3B12-338 Bellows Air Spring
    57893233900000 20160225 Y 3B12-339 3B12-339
    3B12-339 20160226 N 3B12-339 3B12-339
    57893234000000 20192659 Y 3B12-340 3B12-340
    3B12-340 20192770 N 3B12-340 3B12-340
    3B12-342 20407163 N 3B12-342 Bellows Air Spring 3B12-342 Bellows Air Spring
    57893234200077 20252809 Y 3B12-342 WATSON & CHALIN AS0048-3G 3B12-342 WATSON & CHALIN AS0048-3G
    57893234300000 20268045 Y 3B12-343 3B12-343
    3B12-343 20268046 N 3B12-343 3B12-343
    57893234400000 20271943 Y 3B12-344 3B12-344
    57893234500000 20272670 Y 3B12-345 3B12-345
    57893234500004 20272671 Y 3B12-345 3B12-345
    57893234600000 20278885 Y 3B12-346 3B12-346
    57893234600004 20278886 Y 3B12-346 3B12-346
    57893234700000 20277829 Y 3B12-347 3B12-347
    3B12-347 20277900 N 3B12-347 Bellows Air Spring 3B12-347 Bellows Air Spring
    57893234900000 20334042 Y 3B12-349 3B12-349
    3B14-349 20334045 N 3B12-349 3B12-349

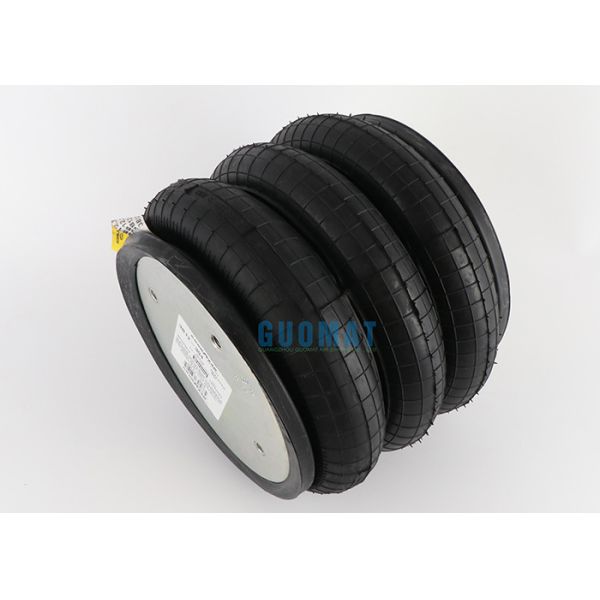

    Quality 3B12-306 Goodyear Air Spring Triple Convolution FT 330-29 CI 1/4 NPT for sale
