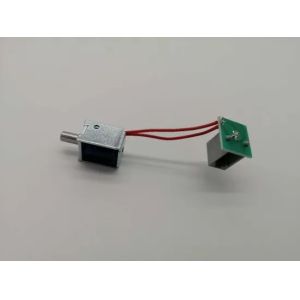

1.6W Push Pull Solenoid Electromagnet

DC 3.7V Solenoid Push-Pull Type Solenoid For Textile Machinery

Product parameters:
1.Name model (P / N): Boshun production and sales of smart cabinet electromagnet BS-0520L-127
2. Standard test conditions (TEST):
2.1 Ambient temperature: -20 ºC ~ 45 ºC
2.2 Relative humidity: 5% ~ 60% RH
2.3 Rated voltage: DC3.7V
2.4 Power Consumption (wattage): 1.6W (DC3.7V, R = 8.5Ω ± 10%)
2.5 Working cycle (PERATION CYCLE): On: Off = 0.2 seconds: 0.2 seconds (continuous power-on, power-on frequency ED 100%)
3. Appearance (facies): no damage, crack, rust, surface stain
4. Electrical characteristics (ELECTRICAL)
4.1 Working voltage: DC3.7V ± 10%
4.2 Potence: Powered DC3.7V products can work normally.
4.3 Insulation resistance: DC500V, ≥50MΩ (between the coil and the skeleton)
4.4 High voltage: AC700V 50 / 60Hz-1 second, maximum leakage current 1mA (between coil and case)
5.0 Life (biometry): More than 200,000 times under normal use.

Product dimension drawing

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated
