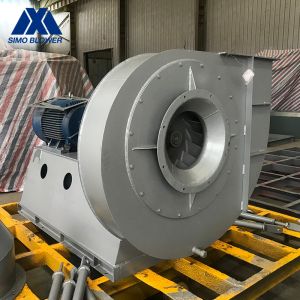

Carbon Steel Anticorrosion Industrial Boiler Forced Draft
Centrifugal Fan
Introduction
Medium requirements for 6-08 series fans: The medium to be
transported should be non-corrosive, non-flammable, explosive, and
free of viscous substances. The dust and hard particles contained
in the medium should be no more than 150mg/m3.This series of fans
is a new type of high efficiency industrial fan in the field of
small flow and medium pressure.The current collector and impeller
front plate are processed by advanced spinning process, and the
precision is guaranteed.V-belt and coupling drivetrain fan is
equipped with integral bearing housing, good lubrication, stable
operation, long bearing life.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 6-08 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan
can be applied in industrial boiler,) it also can be applied in
industrial kilns, blast furnace, Industrial waste heat recovery
device, Electrolytic aluminium production line air purification
system and other industrial work environment.
