Diamond Coated Dental MIlling Burs for Wax , PMMA , Zirconia ,
Glassceramic , Titanian

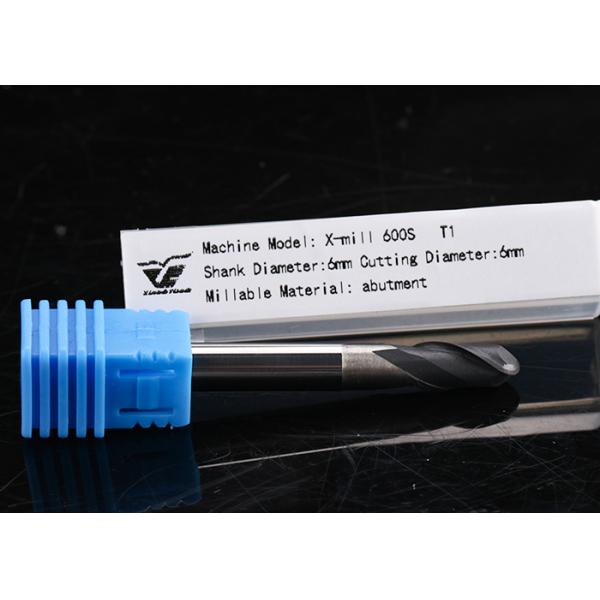

X-CUTTER burs are diamond coated milling burs, manufactured
specifically for CAD/CAM system.
Our milling burs could be applied to Zirconia blocks, glass
ceramic, PMMA and metal .
Specifications :
| φ | Coating | Effective length | Total length | Material |
| 4mm Shank Dia |
| 2.5 | Dia | 15 | 45 | Glass ceramic |
| 1.0 | Dia | 11 | 45 | Glass ceramic |
| 0.6 | Dia | 11 | 45 | Glass ceramic |
| 3mm Shank Dia |
| 2.5 | Dia | 15 | 45 | Glass ceramic |
| 1.0 | Dia | 11 | 45 | Glass ceramic |
| 0.6 | Dia | 11 | 45 | Glass ceramic |
| 3.0 | Dia | 14 | 50 | Metal |
| 2.0 | Dia | 12 | 50 | Metal |
| 1.5 | Dia | 8 | 50 | Metal |
Fuction of three different tools :
T1 : Start on rough cutting, do 80% of the work .
T2 : Continue the 18% of remained by T1, outlook of case has been
shaped .
T3 : Complete the last 2% of groove and margin area cutting .
Note: Long tool for high thickness Zirconia blank milling is also
available ( 22mm above thickness material), which cutting length is
22 mm , instead of 16 mm , of T1 and T2, T3 is the same size.
| 2.0 | Dia | 16 | 50 | Zr , Resin , PMMA |
| 1.0 | Dia | 16 | 50 | Zr , Resin , PMMA |
| 0.6 | Dia | 8 | 50 | Zr , Resin , PMMA |
Features:
1. Made of high quality carbide alloy
2. Long life span thanks to the cutting-edge diamond coating
technology
3. Minimum risk of bur cracking due to the high tenacity
4. Comptible with Zirconia, Wax , glass ceramic ,PMMA,and metal;
5.Exceptionally sharp edge, preventing chipping and cracks of teeth
XTCEAR was founded in 2001,owning 20 years' R&D experience on
Zirconium Dioxide
Ceramic Material and Industrial CNC Milling Machine.
As a member of Aviation Industry of China(AVIC), XTCERA has 1400
employees and over
30,000 square meters R&D and production base.
In the past 10 years, XTCERA has sold out about 4000 units dental
milling machines and
supplied over 1,000,000 pieces of dental Zirconia blanks per year
in the global dental market.
We believe quality is the life of product and trust is the
foundation of business relation.
