    15KW Fan Cooling Storage Rack Roll Forming Machine

    Ask Lasest Price
    Brand Name : BMS
    Model Number : Shelf
    Certification : CE/ISO9001/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30set per month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    15KW Fan Cooling Storage Rack Roll Forming Machine

    Cr12Mov, Heat treatment Automatic Change Type Storage Rack Roll Forming Machine

    The Storage Rack Roll Forming Machine Main Description

    Storage Rack Roll Forming Machine is a necessary Forming Machine for modern Storage shelves. The whole machine saves labour costs, from levelling, punching, forming, folding, all by PLC system automatic completion.
    Brand Forming Machine is committed to the research of cold Forming technology for more than 20 years. It has a professional design and r&d team, strict production standards and excellent after-sales support system.

    Machine flow

    Hydraulic decoiler→Servo Leveling and Notching Machine→Main Roll Forming Machine→Post Cutting and Folding device→PLC→Exit Rack

    5T-600 Hydraulic Decoiler

    Capacity:5 Tons
    Coil Max Width:600mm
    Coil Out Diameter:1500mm
    Coil Inside Diameter:508±30mm
    Type: Oblique type
    Frequency converter: Delta
    Contactor: Schneider
    Indicator light: Schneider

    Servo Leveling and Notching Machine

    No.DescriptionBrandRemark
    1Servo motorJapan YaskawaPower
    2Levelling rollSelf-made45#steel,precision-machined
    3Notching mouldSelf-madeCr12Mov,treatment,hardness HRC60-62
    4Hydraulic valvesJapan YukenGear pump
    5BearingHRBOne of the Top 10 well-known brands


    Main Roll Forming Machine Technical Parameter

    Material Thickness:0.6-1.4mm(About gauge number 18-gauge number 24)
    Test Thickness:1.0mm
    Yield Strength: G345-550
    Material: GI, CRC

    Power: 15KW
    Base Frame: H400Steel
    Material Shaft:40Cr,∅75
    Running roller: GCr15
    Forming speed:20-25m/min
    Forming station:18Groups
    Weight:13500.00kg

    Post Cutting and Folding device

    Cutting: Hydraulic cutting
    Hydraulic power:2.2KW
    Folding: Automatic folding
    The material of cutting blade: Cr12, Heat treatment, hardness is HRC60°-62°

    Feeding guide: limit port
    Material:45#steel, Hard chrome plating, polished

    PLC Control Box
    (1) Brand: Schneider
    (2) Touch screen: HMI Siemens

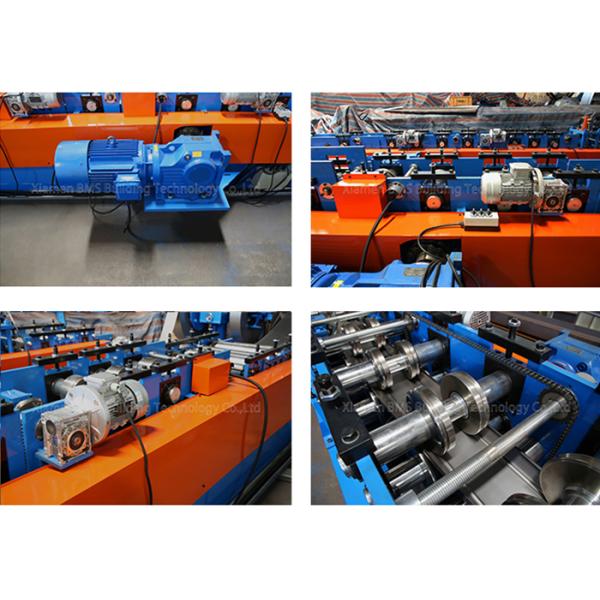

    The roller part
    Changeover motor

    Port of loading: Xiamen, China
    Destination port: As per final request
    Warranty period:24months
    After-sales technical support:24 hours Online After-sales technical support; employee training; Remote video teaching; site instructio.
