    15 Meters/Minute Changeable Cz Purlin Roll Forming Machine

    Ask Lasest Price
    Brand Name : DingBo
    Model Number : DBCZ
    Certification : CE, ISO, SGS
    Price : Negotiable
    Supply Ability : 10 sets per month
    Delivery Time : Within 50 days after receiving the deposit
    • Product Details
    • Company Profile

    15 Meters/Minute Changeable Cz Purlin Roll Forming Machine

    Automatic changeable CZ purlin roll forming machine

    Product Descriptions


    In the steel industry, different purlin structural shapes were given representative names to facilitate the easy description of drawings and documents. Channel sections, with or without flange stiffeners, are usually referenced as C purlin; The channel section without flange stiffeners is also called U purlin. Point symmetry with a shape similar to the letter Z is called a Z purlin.
    Automatic change CZ purlin roll forming machine can produce any specifications of the C&Z profiles (during the width 100~300), no need changing any parts of the machine. It takes one hour to change C shape to Z shape.


    Profile drawing to design


    Working Flow

    hydraulic uncoiler -- straightening -- roll forming part -- hydraulic cutting -- runout table


    Product Parameters

    1.Raw material type: Steel coil/Galvanized coil(optional)
    2.Thickness: 1.5-3.0mm
    3.Roller material: GCr15/Cr12
    4.Shaft material: High Grade No.45 Forged
    5.Forming Stations: 18stations
    6.Control type: PLC (customer's requirement)
    7.Driven type: Chain drive
    8.Main power: 18.5kw
    9.Cutting Blade Material: Cr12Mov


    Main Components


    No.NameQty
    1Manual uncoiler1
    2Punching machine1
    2Main roll forming machine1
    3PLC Control box1
    4Hydraulic pump station1
    5Output table2

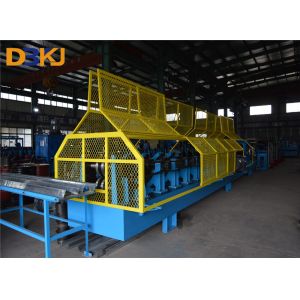

    Pictures
