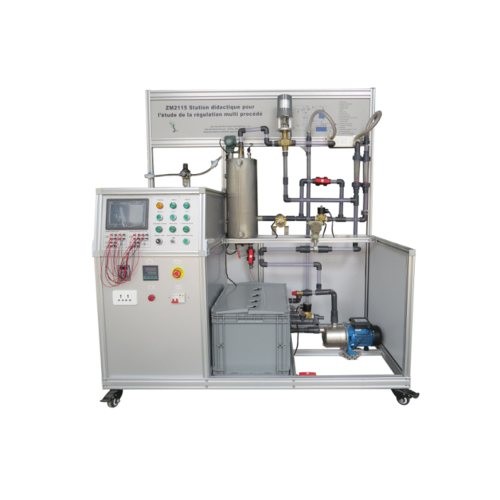

ZE3706 Teaching Aid Equipmt Automatic Trainer Didactic Equipment of
Instrumentation and Process Control (pH and conduct
1.1 Overview
This training device includes modules such as pumps, tanks,
sensors, instruments, and PLC. Through relevant experiments, you
can be familiar with process control principles and operating
methods, and develop students' corresponding knowledge and skills.
It is suitable for higher vocational, vocational, and secondary
vocational schools and Assessment of teaching and skills training
of related majors in technical schools.
1.2 Features
(1) The training device adopts an aluminum profile frame structure,
which is safe and convenient to use and not easy to be damaged.
(2) Various sensors are equipped to complete the training content
of various courses.
(3) The device has a good safety protection system.
2 Performance parameters
(1) Input power: AC120V ± 10% 60Hz
(2) Overall dimensions: 1600mm × 840mm × 1500mm
(3) Overall capacity: <2KVA
(4) Weight: <260kg
(5) Working conditions:
l Ambient temperature -10 ℃ ～ + 40 ℃
l Relative humidity ＜ 85% (25 ℃)
3 Product composition
3.1 PLC
With Profibus interface, integrated Ethernet, 1 RS485, integrated
port and 3 integrated RJ45 ports, with high-resolution display with
integrated color, ability to display alarms and hardware faults, 32
digital inputs and 24 VDC, 32 digital Output 24 VDC, 8-bit analog
input, voltage, current, RTD and thermal coupling with 16-bit
resolution, integrated 16-bit resolution voltage and current analog
with 4 outputs, integrated web server.
3.2 control box
(1) Single-phase power input, controlled by the leakage circuit
breaker, equipped with an emergency stop control button. In an
emergency, press the emergency stop button to cut off the power
supply.
(3) Equipped with power indicator, power output socket and safety
power output terminal.
3.3 pipeline circuit
(1) Includes with 60L main tank
(2) File pump
(3) Upper pump
(4) Fall
(5) Chemical tank
(6) Instrument Montage
(7) Deionization device
(8) Ball valve
(9) Ph sensor
(10) Conductivity sensor
(11) 2 centrifugal pumps
(12) 1 thermal resistance
(13) 1 resistance
(14) 1 analog pressure gauge
(15) 1 analog thermometer
(16) 1 solenoid valve
(17) 1 flowmeter variable area type
(18) 1 release valve
(19) 1 radiator
(20) 1 electromagnetic flowmeter, output is 4.2mA
(21) 1 pressure measuring transmitter with an output of 4.2mA
(22) 1 temperature transmitter with 2 inputs for measuring and
output 4.2mA
(23) 1 conductivity transmitter with an output of 4.2mA
(24) 1 micro flow control valve normally open
(25) 30 pieces of 4mm safety electrical connection cable
4 Can complete experimental training projects
1. PH related training programs
(1) PLC's collection of PH value
(2) PH dynamic balance training
2.Temperature related training items
(1) Collection of temperature value by PLC
(2) Temperature balance dynamic training
3. Training on dynamic balance of pressure value
(1) PLC is worth collecting for pressure
(2) Training on dynamic balance of pressure value
4. PLC acquisition training for conductivity
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply
plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
