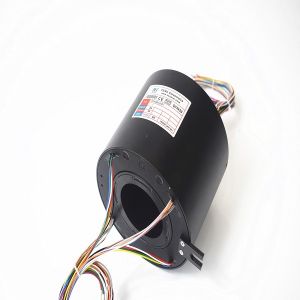

    ECN060-24P1 0~380VDC 60mm 300rpm Through Hole Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN060-24P1
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    ECN060-24P1 0~380VDC 60mm 300rpm Through Hole Slip Ring

    ECN060-24P1 through hole size 60 mm ,24*5A


    CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm,70mm, 80mm, 100mm .and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings .


    Specification

    ECN060-24P1
    Rings24*5A
    Voltage0~380VDC
    Electrical noise≤70mΩ(50rpm)
    Dielectric strength≥1000V@50Hz
    Insulation resistance≥500MΩ@500VDC
    Operating speed0-300 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy
    IP protection gradeIP54
    Through hole size60 mm

    Features

    • Center hole is easy to install.
    • As well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
    • May work under water 100m,anti-corrosion

    Applications

    • For marine
    • For offshore oil rigs
    • Seaport machine

    Optional

    • Through hole size
    • Current rating
    • Integrate various signal
    • IP protection grade


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
