High Fiber Density Ribbon LC UPC 0.9mm MPO MTP

High Fiber Density Ribbon LC UPC 0.9mm MPO MTP

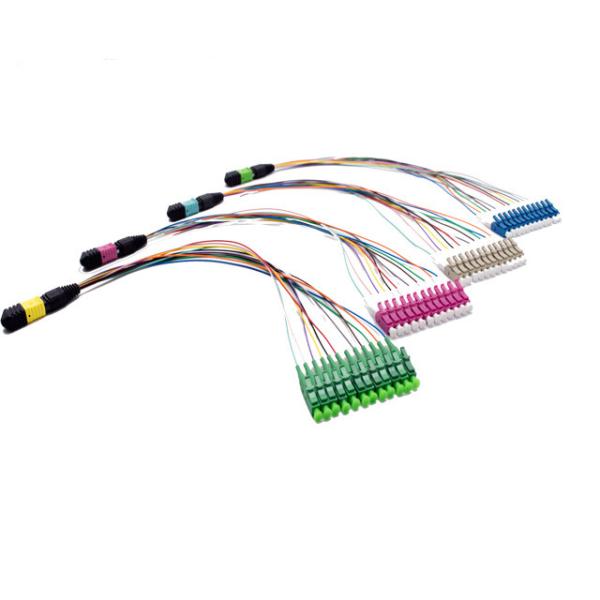

Mutilmode MPO-12 LC UPC 0.9mm cable MPO MTP Fan-out MM Patch Cord 12 Fiber corlor

Description:

MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.

Features:

Single mode and Multimode (Flat/Round) available
High fiber density (maximum 24 fibers)
Fiber in single connector: 4, 8, 12 24
Insert/Pull latching connector
High reflection loss with APC
small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.

Applications:

Telecommunications
CATV, LAN, MAN, WAN, test and measurement
Military industry
Medical

Specification:

Model		SM	MM
MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		APC	UPC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

MPO to LC breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment.

Our MPO-LC breakout cables reduce the overall cost and setup time for complex high density networking environments.

With additional protective jacketing or fire-resistant materials, this line of fiber optic cables simplifies short range data transmission even in harsh working environments.

MPO-LC breakout cable assemblies are most often used to reduce the amount of additional networking hardware within short distances. Their ability to redistribute multiple fibers from a single source to various devices allows for one cable assembly to eliminate the necessity for expensive networking equipment therefore reducing cost, setup time and complexity of fiber networks.

Order Information

For example:MPO-male/PC/R--LC/PC/φ0.9-SM/12F-2/0.5-Type B
Connector	1	MPO-female,MPO-male,LC,SC,FC
Connector	2	MPO-female,MPO-male,LC,SC,FC
Endface	3	PC/APC
Endface	4	PC/APC
Cable Type	5	φ0.9/φ2.0/φ3.0mm /R/D.
Cable Type	6	φ0.9/φ2.0/φ3.0mm /R/D.
Fiber Mode	7	SM(G652D/G657A/G657B),MM(OM1~OM4)
Fiber Count	8	4/8/12/24/32/48....
Cable Length	9	1/2/3m....
Fan-out	10	0.5/0.6/1.0m../S=No fan-out
Polarity	11	A/B/C/Customized
Remark: R=ribbon cable, D=distribution cable
