    Straight Boom Traffic Control Barrier Gate IP54 with infrared photocells

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : E10
    Certification : CE ISO SGS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/month
    Delivery Time : 12 working days after payment received
    • Product Details
    • Company Profile

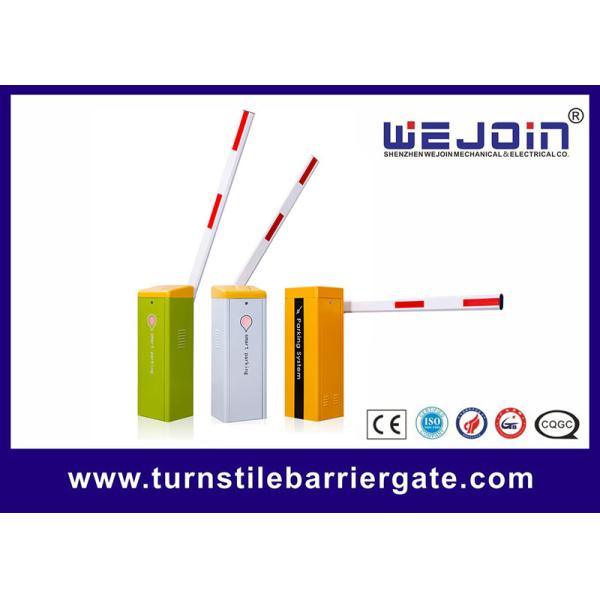

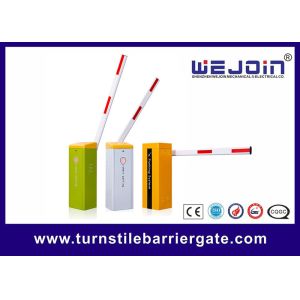

    Straight Boom Traffic Control Barrier Gate IP54 with infrared photocells

    Straight boom automatic vehicle access traffic control barrier gate


    Vehicle Barrier Gate Quick Detail:

    The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.

    # Strong moment, high precision control, low-temperature rise

    # Standard traffic lights

    # 3-5S speed adjustable

    # yellow-green, dark grey + light grey and yellow-white color optional


    Vehicle Barrier Gate Technical Data
    ModelWJDZE (speed 3~5s adjustable)
    Running Speed3S4S5S5S5S5S5S
    Boom-TypeStraightStraightStraight90° Folding180° Folding2 Fence3 Fence
    Max Boom Length4.5M5M6M5M4M4.5M4M
    Input VoltageAC220V±10%, AC110V±10%
    Frequency50/60HZ
    Motor VoltageDC310V
    Enclosure RatingIP54
    Working Temperature-35°C ~ +85°C
    MTBF3 million times
    Traffic Flow Application24 hours of uninterrupted operation
    Max Motor Power120W
    Max Motor Speed24r/min
    Max Torque240N.m

    Vehicle Barrier Gate Functions & Features
    1. No clutch design: open the barrier gate by manual handwheel when the power of.
    2. No limit switch design: the motor can detect the boom position automatically.
    3. Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
    4. Self-detect after power-on, open/close speed is adjustable.
    5. With auto-reversing on obstruction function.
    6. Infrared photocell interface and Loop detector interface are available.
    7 . Built-in delay auto-closing function ,coordinated with counting function .
    8. With auto-aging test function.
    9. NO / NC wire control signal input is optional.

    Maintenance
    1. Keep the barrier gate clean.
    2. Check the joints ever month in case of any loose parts.
    3. Check the balance status of spring after the barrier gate running 1 million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.
