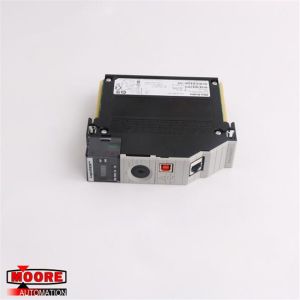

1756-L82E 1756L82E AB AB ControlLogix 5MB controller
⇒ Click here for good price 1756-L82E
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L82E |
| Alternate Part Number | 1756-L82E |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x14x14.5cm |
| Weight | 0.4kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1756-L82E ControlLogix 5580 controller is a controller with a
high-performance processor by AB which is fitted on any
1756-chassis slot and comes with an open-style enclosure. It has a
5 MB user memory for storing user data and comes with a
pre-installed 1784-SD2 2G non-volatile memory for permanent storage
of user data and programs. The 1756-L82E has a controller-fitted
energy storage module which eliminates the need for an external
battery and draws 5mA current from the backplane at 1.2V DC and
draws 1.2mA at 5.1V DC. A 50V circuit isolation is provided from
USB port-to-Ethernet port, USB port-to-backplane, and Ethernet
port-to-backplane, using a basic insulation tested at 1000V AC for
60 seconds.
The 1756-L82E can support a maximum of 128,000 Digital I/O, and
4000 Analog I/O. When operational, it dissipates 6.2W of heat and
has a maximum 21.2 BTU/hr thermal dissipation. Communication on the
1756-L82E is achieved via the built-in USB 2.0 port and the
controller embedded EtherNet port. The USB port is used for online
edits, firmware update, configuration, programming, and it must not
be used in a Hazardous environment. It has a 1 GB EtherNet port
that enables a high-communication capacity, and integrated motion
control, and can support a maximum of 175 nodes. The 1756-L82E has
a functional temperature range between 0 °C and 60 °C (32 °F and
140 °F) at 5-95% non-condensing humidity and has a non-operational
temperature between -40 and 85 °C (-40 and 185 °F). The 1756-L82E
has an operational shock rating of 30G and can maintain function at
an operating vibration of 2G at 10-500Hz.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
