    4 Core FC- SC G657A1 4.8/7.0mm LSZH FTTA CPRI Patch Cord

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : CPRIFCSC4
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

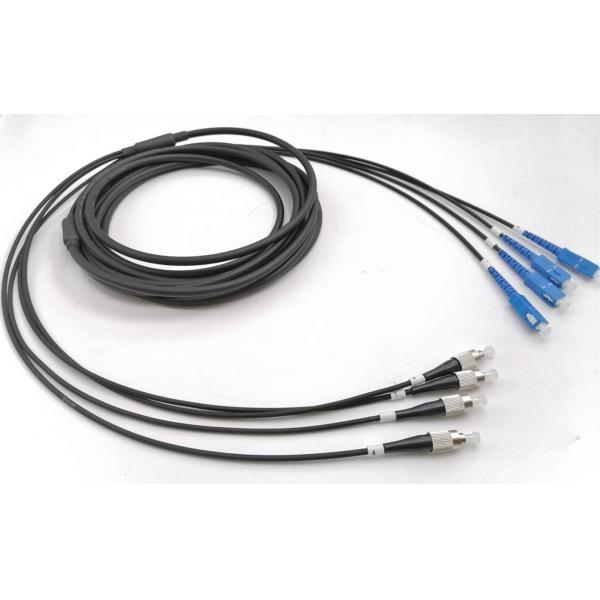

    4 Core FC- SC G657A1 4.8/7.0mm LSZH FTTA CPRI Patch Cord

    FTTA CPRI Patch Cord 4 core FC SC Singlemode G657A1 4.8/7.0mm LSZH

    The CPRI patch cords are standard size widely used in FTTA, Base station, and the outdoor waterproof condition. Spring supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.


    FEATURES

    The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    Standard Duplex LC connector, well connected with standard LC adaptor
    Available Single mode and Multimode
    IP67 protection, salt-mist proof, humidity proof, dust proof
    Low insertion/return loss, steady optical transmitting.
    Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
    500cycles Mechanical life
    Easily add/install jumper cables for a future expansion
    Factory-assembled cables for a fast on-site installation
    Flexibility with small bending radius and excellent cable routing properties
    Equipped with customer specific power and fiber-optic connectors


    APPLICATION
    For connection between distribution box and RRH
    Deployment in Remote Radio Head cell tower applications

    Multi-purpose Outdoor


    Cable Parameters

    Fiber CountCable Dimension
    mm
    Cable Weight
    kg/km
    Tensile
    N
    Crush
    N/100mm
    Min. Bend Radius
    mm
    Temperature
    Long TermShort TermLong TermShort TermDynamicStatic
    2 or 44.8/7.042.32004001100220020D10D-40 ~ 85°C
    Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
    2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
    3. D is outer diameter of the round cable;

    CableModelGYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1,
    Fiber Count2, 4 Fibers
    Fiber TypeSM G652D, SM G657A, or MM 50/125 or MM 62.5/125
    Buffer Diameter900um±10um Material LSZH
    Simplex cable Diameter2.0mm±0.1mm Material LSZH
    ColorOrange or grey or customized
    Filler Diameter2.0mm±0.1mm
    Material LSZHColor Black
    Strength MemberKevlar
    Jacket Diameter7.0±0.1mm
    material PEColor Black
