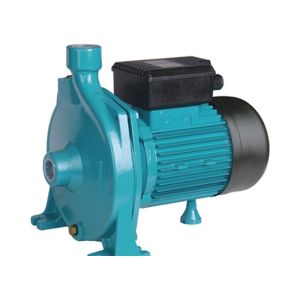

PPO Brass Impeller 0.5HP 0.37KW Centrifugal Water Pump
These pumps are suitable for pumping clean water and fluids which
are not chemically aggressive to pump components. Thus, for
extremely reliable, big capacity and high head, widely used in the
domestic and civil applications, transferring water, irrigating
gardens, etc.
These pumps should be installed in a covered area, protected
against the weather.
Application Feilds
Widely used in living water supply, well water pumping,
pressurization of tap water,hot-water pipeline pressurization,
water tower water supply, gardens and vegetable greenhouse
watering, aquaculture water supply, and drainage, and so on.
Working Condition
Max. fluid temperature +60℃
Max. ambient temperature +40℃
Max. solid impurity:0.1%,Max. particle size: 0.2mm.
Supply voltage: 220/380v 50Hz, ±10% of the rating voltage
fluctuation range
Centrifugal Water Pump
TECHNICAL DATA (220~240V/50HZ)
| Single-phase Motor | n=2850r/min |
| Model | Input max | Output Power | Current | Q.max | H.max | Suct. max |
| kW | kW | HP | A | L/min | m | m |
| CPM-130 | 0.6 | 0.37 | 0.5 | 2.9 | 75 | 20 | 9 |
| CPM-146 | 0.75 | 0.55 | 0.75 | 3.8 | 100 | 25 |
| CPM-158 | 1.1 | 0.75 | 1 | 5.2 | 110 | 32 |
| CPM-180 | 1.5 | 1.1 | 1.5 | 7 | 130 | 42 |
| CPM-200 | 2 | 1.5 | 2 | 9.6 | 150 | 50 |
Other voltages and frequencies are available on request.
Our Customer
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test
things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years
experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times
when producing to ensure the goods in good quality, also we produce
according to request
4.we can be your OEM manufacturer with your authorization of the
brand.
FAQ:
Q: What’s the MOQ?
A: We accept one piece.
Q: Are you a factory or trading company?
A: We are a manufacturer.
Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
Q: What’s the warranty period?
A: 1 year.
Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at
sight.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the
motor bearing system quickly.
(2) currently causes ablation of bearing system components and
heating of bearing components, resulting in a serious failure of
the bearing system.
(3) improper lubrication system leads to bearing heating due to
poor lubrication
(4) bearing heating caused by motor temperature rise or operating
environment temperature.
