76 38x2 Position ZQSFP+ Optical Fiber Transceiver 2299940-2

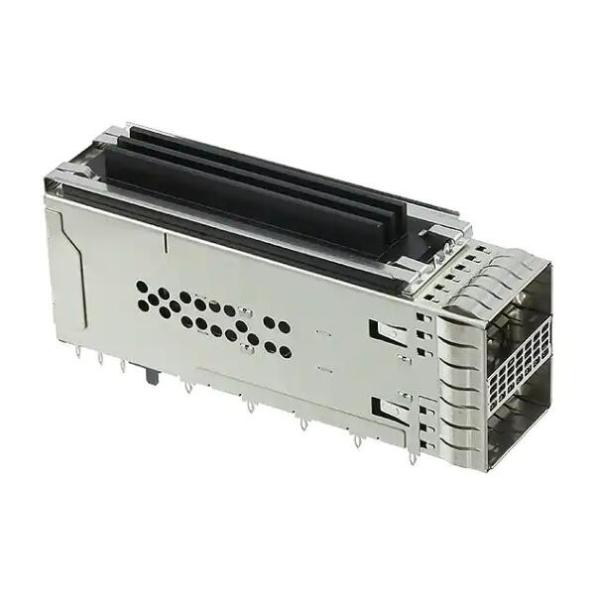

2299940-2 76 (38 x 2) Position ZQSFP+ Receptacle with Cage, Ganged (2x1)

● Compliant to the 100GBASE-SR10 and CPPI Specifications per IEEE 802.3ba-2010 and supporting InfiniBand QDR/DDR/SDR applications
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
● Multi-rate Capability from 1 Gbps to 10.5 Gbps
● High Channel Capacity: >100 Gbps per Module
● Operates at 10.3125 Gbps per Channel with 64b/66b Encoded Data for 100GbE application and at 10 Gbps with 8b/10b Encoded Data for IB-QDR Application
● Hot Pluggable for Easy System Installation
● Link Distance up to 100 m using OM3 Fiber and 150 m using OM4 Fiber
● 0 to 70 °C Case Temperature Operating Range
● Low Power Dissipation: < 3 W
●Proven High Reliability 850nm Technology: Avago VCSEL Array Transmitter and Avago PIN Array Receiver
● Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
● Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
● Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
● Status per Channel: Tx Fault, Electrical (Transmitter) and Optical (Receiver) LOS, and Alarm Flags
● Programmable Equalization and De-Emphasis Settings for System Performance Optimization
● Standard 24 Lane Optical Fiber with MTP (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
