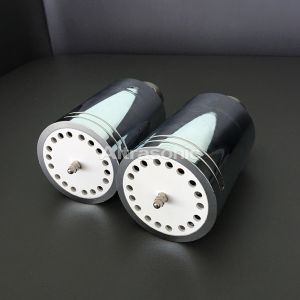

20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding

    Buy cheap 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding from wholesalers

    Buy cheap 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding from wholesalers
    • Buy cheap 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding from wholesalers
    • Buy cheap 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding from wholesalers
    • Buy cheap 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding from wholesalers

    20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-BCJ20
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 1,000 units per month
    Delivery Time : 10working days after receive your payment
    • Product Details
    • Company Profile

    20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding

    20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding


    Specifications:

    Model

    HS-BCJ20

    Frequency

    20khz

    Output power

    3300watt

    Joint bolt

    1/2-20UNF

    Ceramic disc Diameter

    50mm

    Quantity of Ceramic discs

    6pcs

    Capacitance

    20nf

    Amplitude

    20um

    Application

    Welding


    Description:

    An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a pivotal device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology.


    Applications:


    Ultrasonic welding machine

    All material with thermoplasticity can use Ultrasonic welding machine ,

    it can welding the material more easy and stable.Such like plastic, fabric,

    ABS, nonwovens.

    Ultrasonic cutting machine

    Ultrasonic food cutting machine can make perfect edge.

    Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

    at the same.

    Ultrasonic sewing machine

    Ultrasonic sewing can sewing the material without any cotton, and keep

    longer time.


    Applied Range:
    Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
    for use with all 20KHz 2000 and 2000X actuator and IW systems.

    Competitive Advantages:

    1. Made of Titanium

    2. When assembled over, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, therefore, put it on the shelf prior to test will identify nonconforming material.

    3. Testing over and over again to ensure that each transducer performance are excellent.

    4. Possess good heat resistance, great quanlity can be used in a wide range of temperature with long life and high reliability.

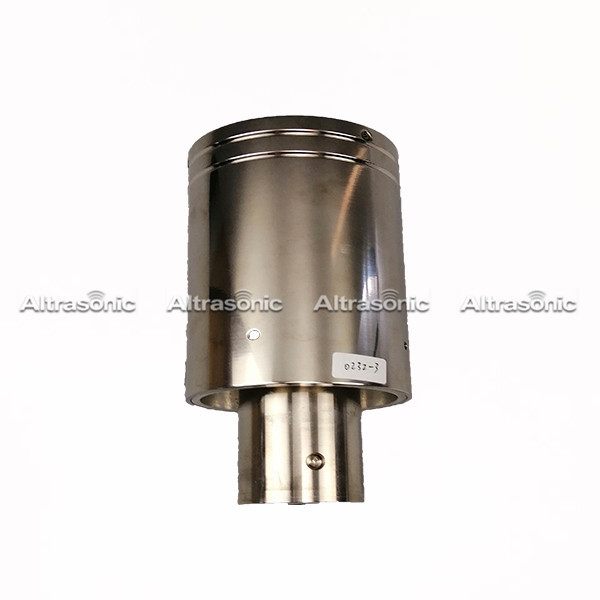

    Quality 20 Khz Ultrasonic Transducer CJ20 Branson Replacement  Welding for sale
