    Jewelry Management IMPINJ Monza R6 P Chip RFID UHF Inlays

    Ask Lasest Price
    Brand Name : JH
    Model Number : RFID inlay-62.5*12
    Certification : CE,SGS,ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,paypal
    Supply Ability : 10,000,000 pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Jewelry Management IMPINJ Monza R6 P Chip RFID UHF Inlays

    Jewelry Management IMPINJ Monza R6 P Chip RFID UHF Inlays

    UHF RFID inlays with IMPINJ Monza R6-P chip for jewelry management

    Quick Details:

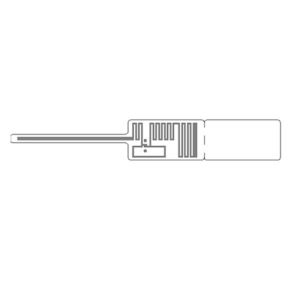

    • Antenna Size:12 x 62.5 mm

    • Chip:IMPINJ Monza R6-P

    • Antenna Material:AL/Silver

    • Substrate Material:PET/Paper

    • Read Distance:Up to 2m

    • Application:Jewelry Management


    Specification:

    Physical Characteristics

    Antenna Dimension

    12 x 62.5 mm

    Inlay /Tag Dimension

    14 x 65 mm

    Antenna Pitch

    20.00±0.500

    PET Width

    76.00±1.00

    Electronic Characteristics

    Protocol

    EPC Class 1 Gen 2/ISO 18000-6C

    Manufacture / IC

    IMPINJ Monza R6-P

    EPC / TID /User Memory

    128bits /96bits /32bits

    Base Material

    Paper

    Face Stock

    N/A

    Antenna

    Silver Paste Antenna

    Operating Frequency

    FCC, ETSI

    Operating Mode

    Passive

    ESD Voltage Immunity

    Max.2000V Human being mode(HBM)

    Environment & Package

    Operating Temperature

    -40°C to +85°C

    Storage Temperature

    -40°C to +85°C

    Static pressure

    <10 MPa

    Package

    5000 pcs/ roll, 4rolls/Carton

    Delivery Formats

    Available formats

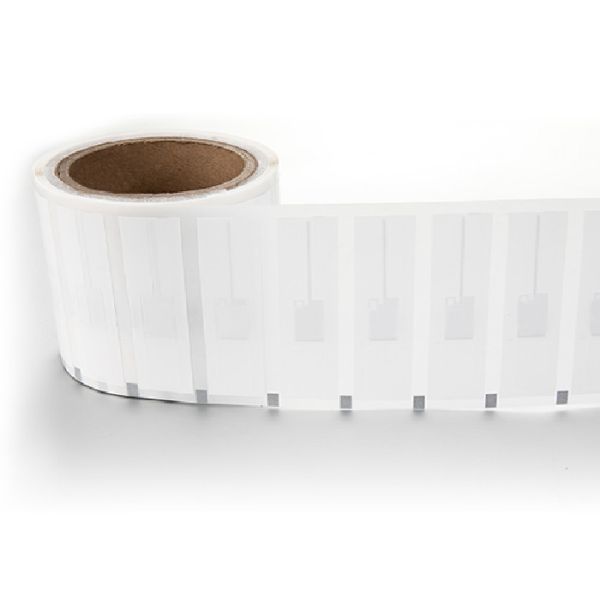

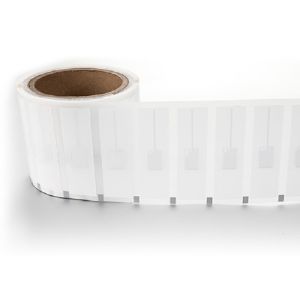

    Dry Inlay, Wet Inlay, RFID Tag

    Quality

    100% tested with out-of-tolerance inlay marked

    Inner core diameter

    76 mm/3 inch


    Package:


    FAQ
    1. How can I place an order?
    Please provide the details of your requirements as clear as possible. All details need be confirmed both of us .

    2. When can I get the price?
    Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call us or advise in your email then we will regard your inquiry priority
    3. How to get a sample to check quality?
    After price confirmation, you can require for samples. Free for a blank sample to check the design and paper quality, as long as you afford the express freight. For printed samples, we will check $30~$100 to cover the cost on film&printing.

    4. How long get the samples?
    After you pay the sample charge and send us confirmed files, the samples will be ready in 3~7days. The samples will be sent to you via express and arrive in 3~5 days.
    5. What kind of files do you accept for printing?

    AI, PDF, PSD, CDR, etc.
    6. Can you do the design for us?
    Yes, we have a professional team having rich experience in design and manufacturing.
    7. What about the lead time for mass production?
    Depends on the order quantity and the season you place the order.
    8. What is your terms of delivery?
    We accept EXW, FOB, CNF, DDU, DDP, etc.
    9. Could I put our own logo on the card?
    Yes,customized is welcome .
