Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	ISO/RoHS/CE
Payment Terms :	L/C, T/T
Supply Ability :	50000meters per week
Delivery Time :	5-15day
Price :	Negotiable

Add to Cart

Product Details
Company Profile

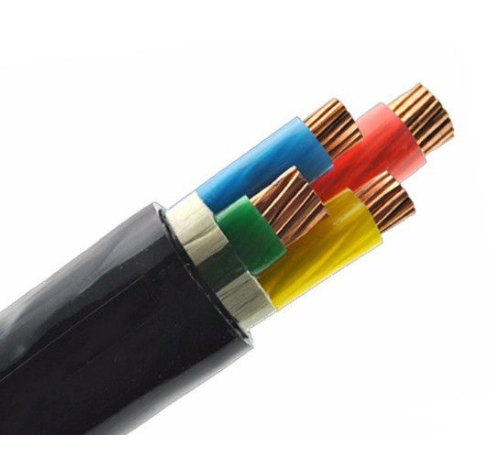

Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable

Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable

1. Conductor: Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
2. class 1: solid, round(RE) or sector (SE)
3. class 2: multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted
4. Insulation: PVC compound DIV-4 acc. to HRN HD 603.1
5. Filler: extruded elastomer or plastomer compound or

6. wrapped thermoplastic tapes
7. Sheath: PVC compound DMV-5 acc. to HRN HD 603.1
8. sheath colour: black

Low voltage copper conductor PVC insulated Cable PVC sheathed cable


Low Voltage Power Cable Voltage rating	No. x Nominal Cross Section of Conductor No. x mm2
Low Voltage Power Cable Voltage rating	single core	two cores	three cores	Four cores	five core
0.6/1 kV	1x4 mm2	2x4 mm2	3x4 mm2	4x4 mm2	5x2.5 mm2
	1x6 mm2	2x6 mm2	3x6 mm2	4x6 mm2	5x4 mm2
	1x10 mm2	2x10 mm2	3x10 mm2	4x10 mm2	5x6 mm2
	1x16 mm2	2x16 mm2	3x16mm2	4x16 mm2	5x10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	4x25 mm2	5x16 mm2
	1x35 mm2	2x35 mm2	3x 35 mm2	4x35 mm2	5x25 mm2
	1x50 mm2	2x50 mm2	3x 50 mm2	4x50 mm2	5x35 mm2
	1x70 mm2	2x70 mm2	3x 70 mm2	4x70 mm2	5x50 mm2
	1x95 mm2	2x95 mm2	3x 95 mm2	4x95 mm2	5x70 mm2
	1x120 mm2	2x120 mm2	3x 120 mm2	4x120 mm2	5x95 mm2
	1x150 mm2	2x150 mm2	3x 150 mm2	4x150 mm2	5x120 mm2
	1x185 mm2	2x185 mm2	3x 185 mm2	4x185 mm2
	1x240 mm2	2x240 mm2	3x 240 mm2	4x240 mm2
	1x300 mm2		3x 300 mm2	4x300 mm2
	1x400 mm2
	1x500 mm2

Low voltage copper conductor PVC insulated Cable PVC sheathed cable
