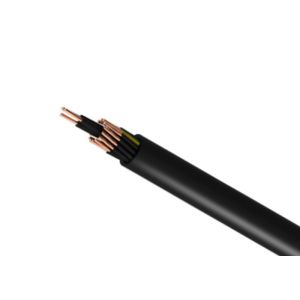

18 Core 1.5mm2 300V / 500V Flexible Copper Conductor Armoured Power Cables

18 Core 1.5mm2 Flexible Copper Conductor Armoured Power Cables

APPLICATION

The cable is a highly flexible multicore cable for use in the connection of lighting technology and dimmer racks. The cable may be used in dry, damp and wet interiors under medium mechanical stress and for external use with UV protection. It is suitable for flexible and fixed applications.

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride) Type TI1
Sheath
PVC (Polyvinyl Chloride) Type TM2

CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Test Voltage
3kV
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 15 x overall diameter
Core Identifcation
Black numbered cores
Sheath Colour
Black

DIMENSIONS

CONDUCTORS
Class 5 Flexible Conductor
