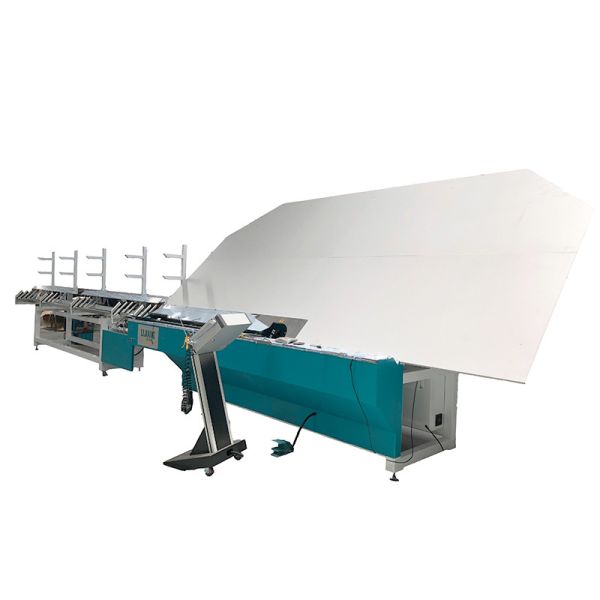

Automatic spacer bending machine LJZW2020 Adopt Siemens PLC control
system
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass,
which replaces the traditional fabrication technology. Automatic
spacer bending machine can make a variety
of convex polygonal aluminum frames by one aluminum strip in one
time, thus strengthening the strength of
the aluminum frame, making the sealing effect of the insulating
glass more better.
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
² Equipment details
- Adopt Siemens PLC control system
- There are 4 Siemens servo
- Adopt 12 sets of racks which could storage more different sizes of
spacers. Use Siemens servo
- to change different racks.
- Automatically cut and feed aluminum spacers
- Bend shaped spacer frames continuously
- Automatically avoid the connecting corner while bending and cutting
- The machine grabs the spacer from the top instead of grabbing the
spacer from bottom, solving
- the old-fashioned reversing problem.
- Using industrial computer technology which could realize the
on-site drawing by workers on the
- industrial computer and directly bending the drawn graphics.
- The special machine hand device is used to bend big spacer frame
- We have the special soft system which could avoid the 120mm to reduce waste. For example,
- if the length of the gusset is 60mm, when the program calculates
the right angle, there is a
- gusset. When you start to bend the rectangular frame, you need
firstly transport 120mm,
- then cut 120mm, and then step on the pedal to bend frame, so you
will waste the 120mm.
