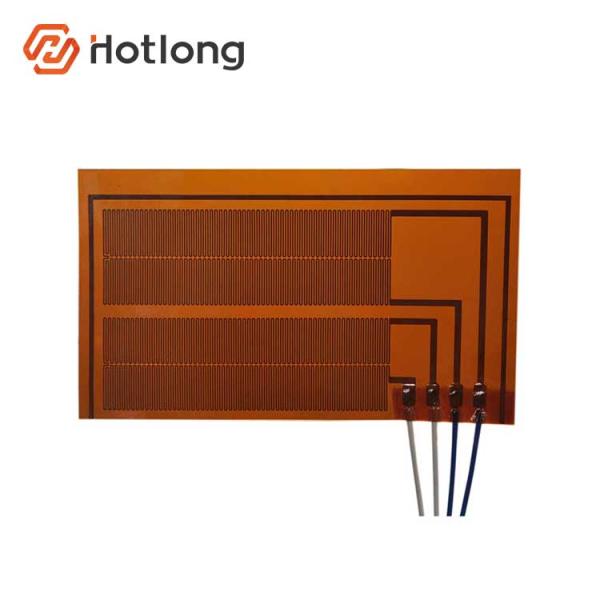

12 v 30 watt 280 x 150 mm pi flexible heater
Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.
| Normal Thickness | Polyimide film(0.08mm)+Etching chips(0.05)+Polyimide film(0.08mm) |
| Working voltage | As your required |
| Working temperature | -60℃-250℃ |
| Watt density | <3w/cm2 |
| Mounting | PSA or mechanical |
| Max size | 500(W)×2000mm(L) |
| Bending radius | >0.8mm |
| Exit | insulated leads |

Introduction
Flexible polyimide film heaters in need of various shapes, sizes
and power are available. this type of heater is very thin (the
thickness is 0.25mm top) and able to bent arbitrarily, which allows
close thermal contact with the heated subject to reach maximum
heating efficiency.
Polyimide film heater is a translucent or transparent metallic
electric heating film, resistive circuit made of special alloy is
covered PI films with excellent temperature tolerance and
insulation. Compared with filiform electrothermal structure, PI
heaters provides more uniform thermal field, shorter heating period
and shifter response, lower power load but longer service life.
PSA or Epoxy resin are optional for installation.
| ◊ Heat resistant temp. | |
| continuous use temp. | 200°C(customized) |
| max. temp. | 250°C(customized) |
| ◊ Power characteristics | |
| insulation resistance | 1000MΩ or over DC500V(customized) |
| withstand voltage | 1500V/1min(customized) |
| ◊ Size | |
| max. | customized |
| min. | customized |
| thickness | customized |





![]()

![]()
|
